Rear Driveline Module

Fig 1: ELECTRIC CLUTCH AT REAR AXLE
GC0052954Courtesy of CHRYSLER LLC
  1. Remove the four bolts (1) holding the rear axle electric clutch. See Fig 1.
  2. Separate the rear axle electric clutch from the rear axle.
    Fig 2: BOLTS AT REAR AXLE
    GC0052955Courtesy of CHRYSLER LLC
  3. Remove the differential case bolts (1).
  4. Remove the cap bolts (2).
  5. Remove differential cover and both axle seals.
    Fig 3: CARRIER AT REAR AXLE
    GC0052956Courtesy of CHRYSLER LLC
    NOTE: There are select shims at each side of the carrier.
  6. Remove the carrier (1) from the differential housing (2).
  7. Measure the select shims on each side of the carrier roller bearings and note for installation.
    Fig 4: RING GEAR BOLTS
    GC0052957Courtesy of CHRYSLER LLC
  8. Remove the ring gear bolts (1).
  9. Remove the ring gear (2).
    Fig 5: ROLL PIN
    GC0052958Courtesy of CHRYSLER LLC
  10. Remove roll pin (1) in carrier case (2) and through the pinion mate shaft (4) using a punch (3).
    Fig 6: SPIDER AND SIDE GEARS
    GC0052959Courtesy of CHRYSLER LLC
  11. Remove spider gears (3), thrust washers (4) and side gears (2).

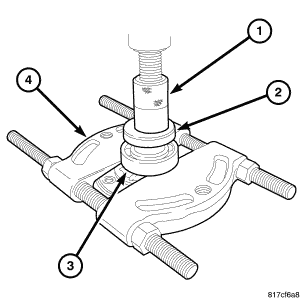

    Fig 7: REMOVE CARRIER BEARINGS
    GC0052960Courtesy of CHRYSLER LLC
  12. Remove carrier bearings (3) using Splitter 1130 (4), Installer 9643 (2) and a press (1).

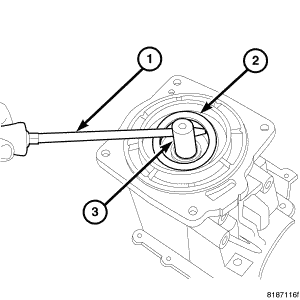

    Fig 8: REMOVE PINION SEAL
    GC0052961Courtesy of CHRYSLER LLC
  13. Use a screw driver to remove the pinion seal.
    Fig 9: PINION NUT ON AND OFF
    GC0052962Courtesy of CHRYSLER LLC
  14. Remove pinion retaining nut using Spline Holder 9742 (1) and Socket 9921 (2).

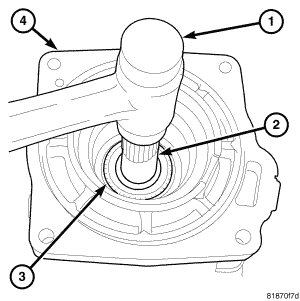

    Fig 10: REMOVE PINION
    GC0052963Courtesy of CHRYSLER LLC
  15. Tap pinion (3) with a soft hammer (1) to remove from case (4).

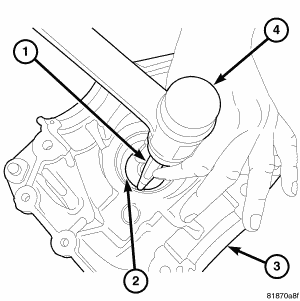

    Fig 11: OUTER PINION BEARING CUP
    GC0052964Courtesy of CHRYSLER LLC
  16. Using a hammer (4) and a punch (1) remove the outer pinion bearing cup (2).

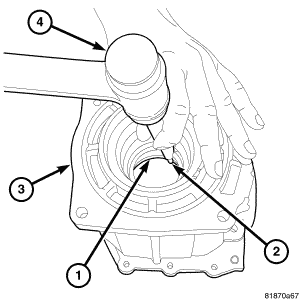

    Fig 12: PINION HEAD BEARING CUP
    GC0052965Courtesy of CHRYSLER LLC
  17. Using a hammer (4) and a punch (2) remove the pinion head bearing cup (1).
    Fig 13: OUTER PINION BEARING
    GC0052966Courtesy of CHRYSLER LLC
  18. Remove collapsible spacer (2) from the pinion shaft (1).

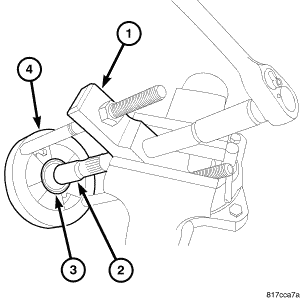

    Fig 14: Removing Pinion Bearing Using Puller C-293-PA And Adapters C293-45
    GC0052967Courtesy of CHRYSLER LLC
  19. Remove the pinion bearing (3) using Puller C-293-PA (1) and Adapters C293-45 (2).
