Electronic Overhead Module Connector End View (C1)

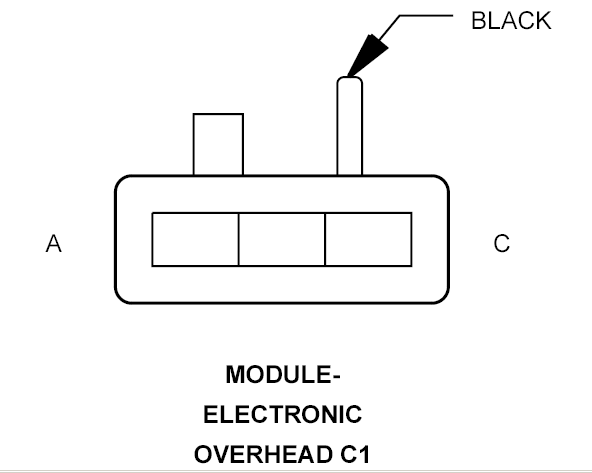

MODULE-ELECTRONIC OVERHEAD C1 - BLACK 3 WAY

GMK880181Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A M27 20YL/LB READING/RAIL LAMPS DRIVER
B Z936 20BK/LB GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER
