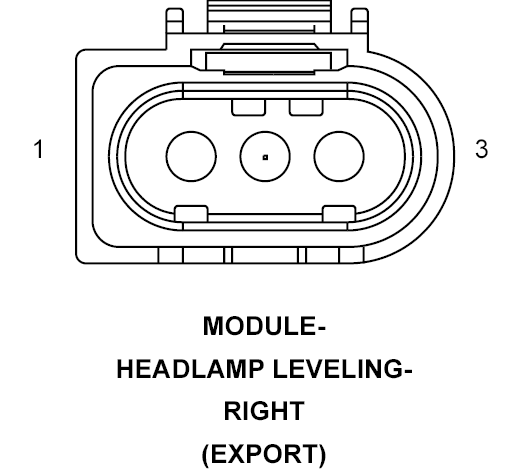

Right Headlamp Leveling Module (Export) Connector End View
MODULE-HEADLAMP LEVELING-RIGHT - 3 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z908 18BK/PK |
GROUND |
| 2 |
L132 20LG/WT |
HEADLAMP LEVEL SENSOR SIGNAL |
| 3 |
L70 20WT/GY |
HEADLAMP SWITCH OUTPUT |
