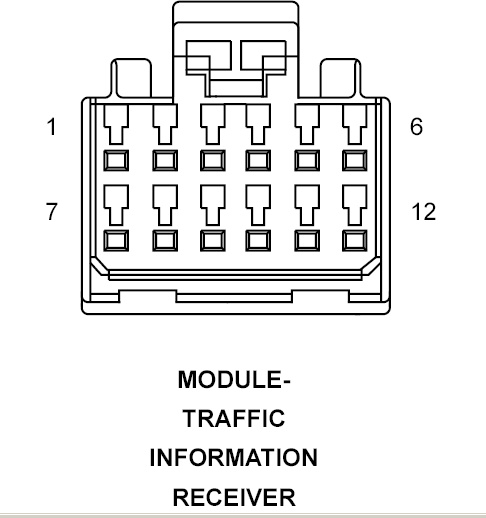

Traffic Information Receiver Module Connector End View

MODULE-TRAFFIC INFORMATION RECEIVER - 12 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A413 20RD/LB	FUSED B(+) (I.O.D.)
2	-	-
3	-	-
4	-	-
5	D55 20WT/OR	CAN B BUS (+)
6	-	-
7	-	-
8	-	-
9	-	-
10	-	-
11	D54 20WT/PK	CAN B BUS (-)
12	Z909 20BK	GROUND
