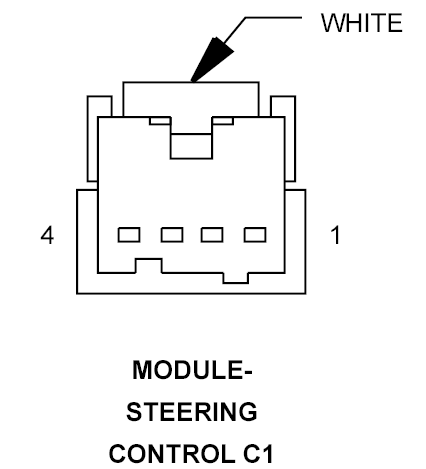

Steering Control Module Connector End View (C1)
MODULE-STEERING CONTROL C1 - WHITE 4 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z937 20BK/YL |
GROUND (EXCEPT EXPORT/EXCEPT BASE) |
| 1 |
Z936 20BK/LB |
GROUND (EXPORT/EXCEPT EXPORT BASE) |
| 2 |
A411 20RD/LG |
FUSED B(+) (I.O.D.) |
| 3 |
D506 20WT/DG |
LIN BUS |
| 4 |
F202 18PK/GY |
IGNITION SWITCH OUTPUT (RUN-START) |
