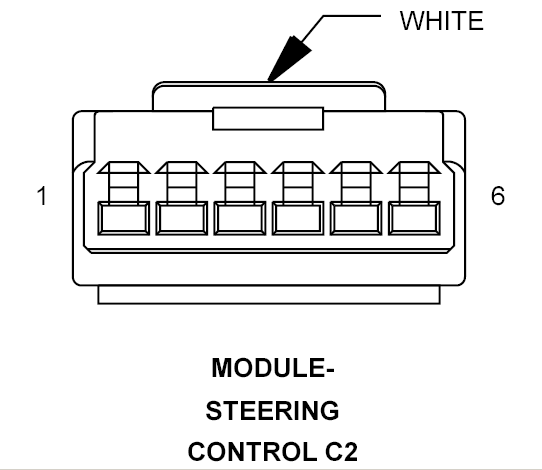

Steering Control Module Connector End View (C2)
MODULE-STEERING CONTROL C2 - WHITE 6 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X20 20GY/WT |
RADIO CONTROL MUX (REMOTE RADIO CONTROL) |
| 2 |
Y13 20DG/RD |
RADIO CONTROL RETURN |
| 3 |
X3 20DG/VT |
HORN SWITCH SENSE |
| 4 |
V72 20OR/VT |
S/C SIGNAL 2 |
| 5 |
V937 20VT/LG |
S/C SWITCH GROUND |
| 6 |
V71 20VT/OR |
S/C SIGNAL 1 |
