Engine Assembly

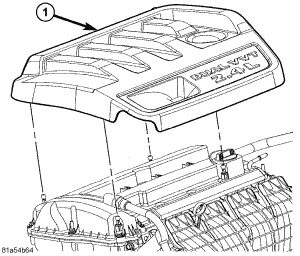

Fig 1: ENGINE COVER
GC0054838Courtesy of CHRYSLER LLC
  1. Remove hood.
  2. Remove engine cover (1).

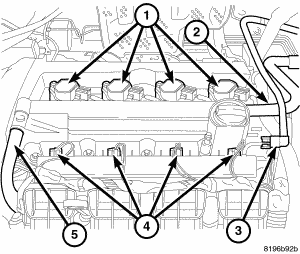

    Fig 2: COIL CONNECTOR
    GC0054839Courtesy of CHRYSLER LLC
  3. Perform fuel pressure release procedure. Refer to STANDARD PROCEDURE then disconnect and remove fuel line (3).
  4. Remove make-up air hose (2).
    Fig 3: AIR CLEANER INLET
    GC0054840Courtesy of CHRYSLER LLC
  5. Loosen retainers (5) and remove air inlet tube (2).

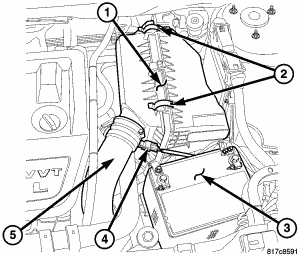

    Fig 4: AIR CLEANER HOUSING
    GC0054841Courtesy of CHRYSLER LLC
  6. Disconnect intake air temperature sensor electrical connector (4).
  7. Remove clean air tube from air cleaner housing (5).
  8. Remove air cleaner housing assembly (1). Refer to REMOVAL .

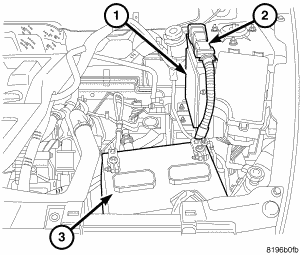

    Fig 5: BATTERY
    GC0054842Courtesy of CHRYSLER LLC
  9. Disconnect both cables from battery and remove battery (3).
    Fig 6: Battery Tray
    GC0054843Courtesy of CHRYSLER LLC
  10. Remove battery tray (1).
  11. Discharge air conditioning system, if equipped. Refer to STANDARD PROCEDURE .
  12. Drain cooling system. Refer to STANDARD PROCEDURE .
    Fig 7: COOLANT RESERVOIR
    GC0054844Courtesy of CHRYSLER LLC
  13. Remove coolant reservoir (3).
  14. Remove power steering reservoir (2).
  15. Remove windshield washer reservoir (1).
    Fig 8: COOLANT ADAPTER
    GC0054845Courtesy of CHRYSLER LLC
  16. Remove coolant hoses from coolant adapter (3).
  17. Disconnect coolant temperature sensor connector (1) and capacitor connector (2).
    Fig 9: RADIATOR HOSE SUPPORT
    GC0054846Courtesy of CHRYSLER LLC
  18. Remove upper radiator hose support (1).
    Fig 10: COIL CONNECTOR
    GC0054839Courtesy of CHRYSLER LLC
  19. Disconnect coils (1), injectors (4), cam sensors, oil temperature sensor, and oil control valve electrical connectors and reposition harness.
  20. Remove PCV hose (5) from valve cover.
    Fig 11: THROTTLE BODY SUPPORT
    GC0054847Courtesy of CHRYSLER LLC
  21. Remove harness from intake (2).
  22. Remove throttle body support bracket (1).
  23. Remove vacuum lines from intake manifold.
  24. Disconnect electronic throttle control and manifold flow control valve electrical connectors.

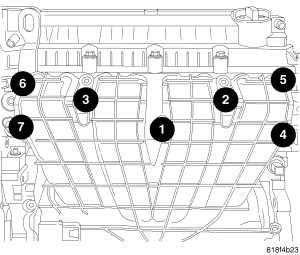

    Fig 12: INTAKE BOLTS
    GC0054848Courtesy of CHRYSLER LLC
  25. Remove dipstick.
  26. Remove intake bolts (1-7) and remove intake.
  27. Disconnect coolant temperature sensor at block, knock sensor, oil pressure sensor, generator, starter, block heater (if equipped), A/C compressor (if equipped), and block ground.
  28. Remove accessory drive belt.
    Fig 13: POWER STEERING LINE SUPPORT
    GC0054849Courtesy of CHRYSLER LLC
  29. Remove power steering line support at engine mount (1).

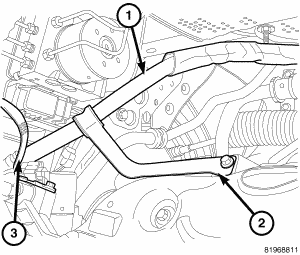

    Fig 14: P/S HOSE SUPPORT-FWD
    GC0054850Courtesy of CHRYSLER LLC
  30. On FWD vehicles, remove power steering hose support from exhaust manifold (2).
  31. Remove power steering pump and set aside.
    Fig 15: GROUND STRAP
    GC0054851Courtesy of CHRYSLER LLC
  32. Remove ground strap (1) at right strut tower.
  33. Raise vehicle.
    Fig 16: DAMPER REMOVAL
    GC0054852Courtesy of CHRYSLER LLC
  34. Install Damper holder 9707 (1).
  35. Remove crankshaft damper bolt and remove damper.
  36. Remove right wheel.
  37. Remove right splash shield.
    Fig 17: OIL DRAIN PLUG
    GC0054853Courtesy of CHRYSLER LLC
  38. Drain oil (2).
    Fig 18: CAT AT EXHAUST MANIFOLD
    GC0054854Courtesy of CHRYSLER LLC
  39. On AWD vehicles, remove maniverter. Refer to REMOVAL .
  40. Remove exhaust pipe to exhaust manifold bolts (1).
  41. Disconnect oxygen sensor connector (3).
    Fig 19: MOVING EXHAUST
    GC0054855Courtesy of CHRYSLER LLC
  42. On FWD vehicles, pull the exhaust pipe (1) rearward with a suitable strap (2).
    Fig 20: INSPECTION COVER
    GC0054856Courtesy of CHRYSLER LLC
  43. Remove inspection cover (1) and mark torque converter to flywheel.
    Fig 21: BOLTS
    GC0054857Courtesy of CHRYSLER LLC
  44. On vehicles equipped with an automatic transaxle, remove torque converter bolts (1).
  45. On vehicles equipped with an manual transaxle, remove modular clutch bolts (1).
  46. Remove lower bellhousing bolts (2).
    Fig 22: A/C COMPRESSOR
    GC0054858Courtesy of CHRYSLER LLC
  47. Remove A/C compressor (1).
  48. Remove generator and lower idler pulley.
    Fig 23: CRANKSHAFT POSITION SENSOR
    GC0054859Courtesy of CHRYSLER LLC
  49. Disconnect crankshaft position sensor (2) electrical connector.
  50. Remove crankshaft position sensor (2).

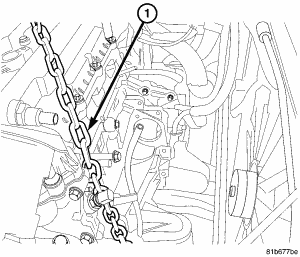

    Fig 24: LIFT CHAIN
    GC0054860Courtesy of CHRYSLER LLC
  51. Remove exhaust variable valve timing solenoid.
  52. Install engine lift chain (1).
  53. Install engine lift chain to rear lift hook.
  54. Install appropriate engine lifting crane.
    Fig 25: RIGHT ENGINE MOUNT
    GC0054861Courtesy of CHRYSLER LLC
  55. Remove engine mount through bolt (4).
  56. Remove right engine mount bracket retaining bolts (3).
  57. Remove engine mount adapter (2).
  58. Raise engine away from vehicle.
