Valve Timing Verification

Fig 1: TDC
GC0054787Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Remove cylinder head cover. Refer to REMOVAL .
  3. Set engine to TDC (1,2).

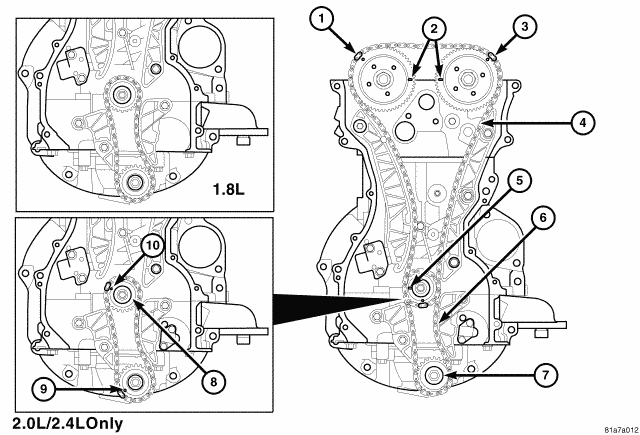

    Fig 2: TIMING MARKS
    GC0054788Courtesy of CHRYSLER LLC
  4. The mark on the camshaft sprocket should be in line with the cylinder head cover sealing surface (2).
  5. Verify that the painted or colored chain links (1,3) aligns with marks on camshaft sprockets.
  6. Verify that the painted or colored chain link aligns with mark on crankshaft sprocket.
  7. Install cylinder head cover. Refer to INSTALLATION .
