Timing Chain Cover: Installation: Installation

Fig 1: FRONT COVER UPPER T-JOINTS
GC0055113Courtesy of CHRYSLER LLC
NOTE: When using RTV, the sealing surfaces must be clean and free from grease and oil.
NOTE: When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.
  1. Clean all sealing surfaces.
  2. Apply Mopar® engine sealant RTV (or equivalent) as shown in illustration at the cylinder head to block parting line (1,2).

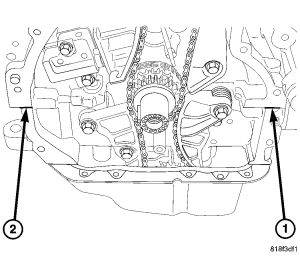

    Fig 2: LOWER T-JOINTS
    GC0055114Courtesy of CHRYSLER LLC
  3. Apply Mopar® engine sealant RTV (or equivalent) as shown in illustration at the ladder frame to block parting line (1,2).

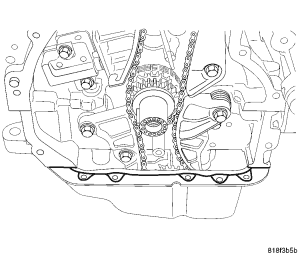

    Fig 3: SEALING OIL PAN
    GC0055115Courtesy of CHRYSLER LLC
  4. Apply Mopar® engine sealant RTV (or equivalent) as shown in illustration in the corner of the oil pan and block.
  5. Apply 2 mm bead of Mopar® engine sealant RTV (or equivalent) to the oil pan as shown in illustration.
    Fig 4: TIMING CHAIN COVER SEALING
    GC0055116Courtesy of CHRYSLER LLC
  6. Apply 2 mm bead of Mopar® engine sealant RTV (or equivalent) to the engine block (1,2) as shown in illustration.
    Fig 5: TIMING CHAIN COVER REMOVAL
    GC0055112Courtesy of CHRYSLER LLC
  7. Install timing chain cover (1) upwards from under the vehicle.
  8. Install timing chain cover upper retaining bolts and tighten M6 bolts to 9 N.m (80 in lbs) and M8 bolts to 26 N.m (230 in lbs).
  9. Install accessory drive belt tensioner.
    Fig 6: RIGHT ENGINE MOUNT BRACKET
    GC0055117Courtesy of CHRYSLER LLC
  10. Install right engine mount bracket (1).
  11. Install accessory drive belt upper idler pulley.
    Fig 7: RIGHT ENGINE MOUNT
    GC0055118Courtesy of CHRYSLER LLC
  12. Install right engine mount (1).
  13. Remove jack from under engine.
  14. Install power steering pump.
  15. Raise vehicle.
    Fig 8: TIMING CHAIN COVER LOWER BOLTS
    GC0055119Courtesy of CHRYSLER LLC
  16. Install oil pan to timing chain cover lower retaining bolts (1) and tighten bolts.
  17. Install timing chain cover retaining bolts and tighten bolts to 9 N.m (80 in lbs).
    Fig 9: ENGINE FRONT
    GC0055120Courtesy of CHRYSLER LLC
  18. Install water pump pulley (4).
  19. Install crankshaft pulley (2) and tighten bolt.
  20. Install accessory drive belt lower idler pulley.
    Fig 10: A/C COMPRESSOR
    GC0055121Courtesy of CHRYSLER LLC
  21. Install lower A/C compressor mounting bracket (2).
  22. Install A/C compressor (1).
  23. Install accessory drive belt. Refer to INSTALLATION .
  24. Install right lower splash shield.
  25. Lower vehicle.
    Fig 11: Cylinder Head Cover Bolt Torque Sequence
    GC0055122Courtesy of CHRYSLER LLC
  26. Install cylinder head cover. Refer to INSTALLATION .

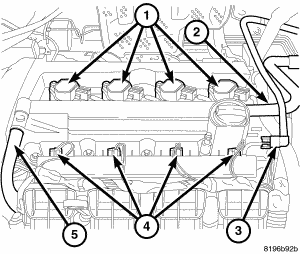

    Fig 12: COIL CONNECTOR
    GC0055123Courtesy of CHRYSLER LLC
  27. Connect coil electrical connectors (1).
  28. Connect PCV hose (5) to PCV valve.
  29. Connect make up air hose (2).
    Fig 13: COOLANT RESERVOIR
    GC0055124Courtesy of CHRYSLER LLC
  30. Install power steering reservoir (2).
  31. Install windshield washer bottle (1).
  32. Install coolant recovery bottle (3).
  33. Fill cooling system. Refer to STANDARD PROCEDURE .

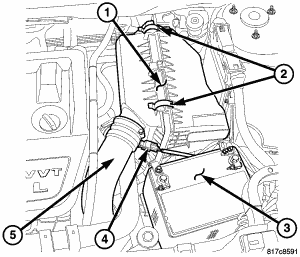

    Fig 14: AIR CLEANER INLET
    GC0055125Courtesy of CHRYSLER LLC
  34. Install air cleaner housing inlet (2).
    Fig 15: AIR CLEANER HOUSING
    GC0055126Courtesy of CHRYSLER LLC
  35. Connect negative cable to battery (3).
  36. Install engine cover.
