Ladder Frame

WARNING: This page is about a different variant/trim than selected.

Fig 1: Bead Of Sealant

Courtesy of CHRYSLER LLC

NOTE: When using RTV, the sealing surfaces must be clean and free from grease and oil.

NOTE: When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.

Apply a 2 mm bead of Mopar® engine sealant RTV or equivalent as shown in illustration.

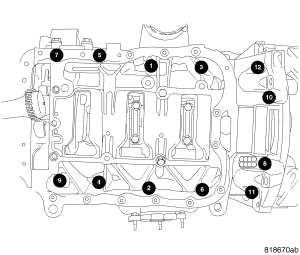

Fig 2: Torque Sequence
Courtesy of CHRYSLER LLC
Install bolts and tighten as shown in illustration following a two step method.
1. First: All to 10 N.m (89 in. lbs.).
2. Second: All to 26 N.m (19 ft. lbs.).
Install balance shaft module. See INSTALLATION .
Install oil pan. See INSTALLATION .
