Engine Mount - Left

WARNING: This page is about a different variant/trim than selected.
Fig 1: Left Mount
GC0054703Courtesy of CHRYSLER LLC
  1. Position mount (2) in place.
  2. Install left mount to frame rail bolts (1) and torque to 75 N.m (55 ft. lbs.).
  3. Install mount through bolt (3) and torque to 100 N.m (74 ft.lbs.).
  4. Remove jack.

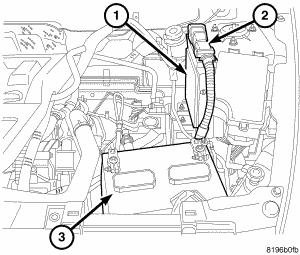

    Fig 2: Battery, Negative Battery Cable & PCM
    GC0054704Courtesy of CHRYSLER LLC
  5. Install PCM mounting bracket.
  6. Install PCM (1).
  7. Connect negative cable to battery (3).
    Fig 3: Air Cleaner Housing Assembly
    GC0054705Courtesy of CHRYSLER LLC
  8. Install air cleaner housing (1) and air cleaner inlet (2).
