Timing Chain

WARNING: This page is about a different variant/trim than selected.

Fig 1: Crankshaft Timing Marks

Courtesy of CHRYSLER LLC

Verify that the crankshaft sprocket keyway is at the 9 o'clock position.

Fig 2: Camshaft Timing Marks
Courtesy of CHRYSLER LLC
Align camshaft timing marks (3) so they are parallel to the cylinder head and aligned with each other as shown in illustration.

Fig 3: TIMING DRIVE
Courtesy of CHRYSLER LLC
Install timing chain guide (4) and tighten bolts to 12 N.m (105 in. lbs.).

Fig 4: TIMING CHAIN TIMING MARKS
Courtesy of CHRYSLER LLC
Install timing chain so plated links on chain align with timing marks on camshaft sprockets (1).

Fig 5: Crankshaft Timing Marks
Courtesy of CHRYSLER LLC
Align timing mark on the crankshaft sprocket (2) with the plated link (3) on the timing chain. Position chain so slack will be on the tensioner side.

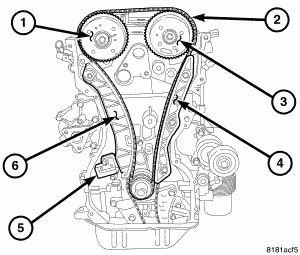

Fig 6: Timing Drive
Courtesy of CHRYSLER LLC

NOTE: Keep the slack in the timing chain on the tensioner side.
Install the moveable timing chain pivot guide (6) and tighten bolt to 12 N.m (105 in. lbs.).

Fig 7: Resetting Timing Chain Tensioner
Courtesy of CHRYSLER LLC
Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner body (4). Insert Tensioner Pin 8514 into slot (1) to hold tensioner plunger in the retracted position.

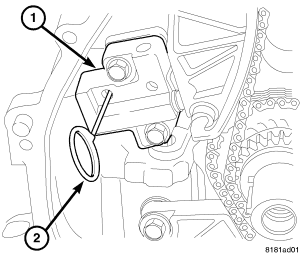

Fig 8: Removing timing Tensioner Pin
Courtesy of CHRYSLER LLC
Install timing chain tensioner (1) and tighten bolts to 12 N.m (105 in. lbs.).
Remove timing Tensioner Pin 8514 (2).

Fig 9: Crankshaft Timing Marks
Courtesy of CHRYSLER LLC

Rotate the crankshaft CLOCKWISE two complete revolutions until the crankshaft is repositioned at the TDC position with the key way at the 9 o'clock position.

Fig 10: Camshaft Timing Marks
Courtesy of CHRYSLER LLC
Verify that the camshafts timing marks (3) are in the proper position.
Install front timing chain cover. See INSTALLATION .

Fig 11: TDC
Courtesy of CHRYSLER LLC
Install the balancer and verify that balancer mark (2) and cover mark (1) are aligned.
Connect negative battery cable.
Fill with oil, start engine and check for leaks.
