Map Sensor (Gas) Connector End View

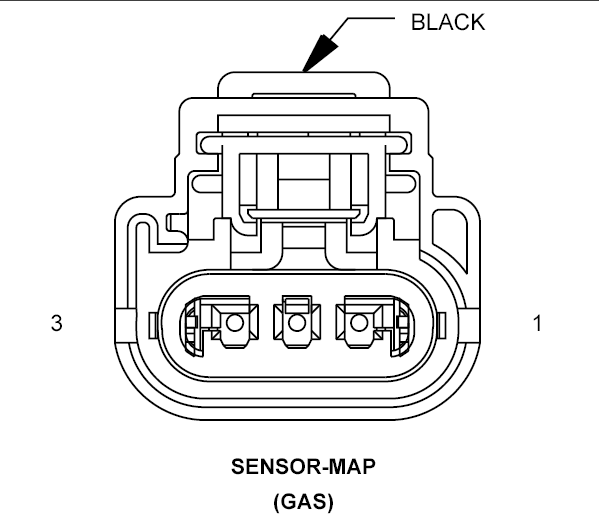

SENSOR-MAP - BLACK 3 WAY (GAS)

GMK880261Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K1 20VT/LB MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 K857 20BR/LG 5 VOLT SUPPLY
