Trailing Link

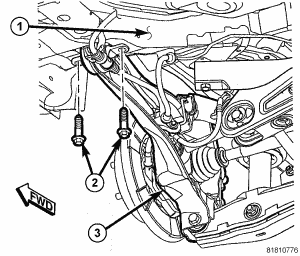

Fig 1: TRAILING LINK MOUNTING TO BODY
GC0052912Courtesy of CHRYSLER LLC
  1. Position the trailing link and install the two bolts (2) fastening the leading end of the trailing link (3) to the body (1). Tighten the two mounting bolts to 110 N.m (81 ft. lbs.).
    Fig 2: UPPER AND LOWER ARM MOUNTING
    GC0052911Courtesy of CHRYSLER LLC
  2. Position the upper control arm on the trailing link (3) and install the bolt and nut (1) securing the arm to the link. Tighten the mounting bolt nut to 95 N.m (70 ft. lbs.).
  3. Position the lower control arm on the trailing link (3) and install the bolt and nut (2) securing the arm to the link. Tighten the mounting bolt nut to 95 N.m (70 ft. lbs.).
    Fig 3: TOE LINK
    GC0052904Courtesy of CHRYSLER LLC
  4. Install the bolt (2) securing the toe link to the trailing link. To install the bolt it may be necessary to flex the trailing link body mount bushing inward or outward using an appropriate prying tool. Tighten the mounting bolt to 95 N.m (70 ft. lbs.).
    Fig 4: PARKING BRAKE CABLE HAIR PIN
    GC0052910Courtesy of CHRYSLER LLC
  5. Insert the parking brake cable through the trailing link from the inboard side.
  6. Slide the parking brake cable (2) into the brake support plate (3) with parking brake shoes.
  7. Install the hair pin (1) securing the parking brake cable (2) to the brake support plate (3).
    Fig 5: Installing Cable To Lever
    GC0022737Courtesy of CHRYSLER LLC
  8. Install the parking brake cable onto the lever on the parking brake shoe.
    Fig 6: REAR WHEEL SPEED SENSOR MOUNTING TO TRAILING LINK
    GC0052909Courtesy of CHRYSLER LLC
  9. If equipped, position the wheel speed sensor (3) and install the screw (4) fastening the sensor to the trailing link (2). Tighten the mounting screw to 18 N.m (13 ft. lbs.).
  10. If equipped, position the wheel speed sensor (3) and install the routing clip (1) fastening the sensor to the trailing link (2).
  11. Install the hub and bearing, then install the brake rotor onto the wheel studs. See INSTALLATION .
    Fig 7: REAR CALIPER/ADAPTER MOUNTING
    GC0052908Courtesy of CHRYSLER LLC
  12. Slide the disc brake caliper (2) and adapter (3) assembly over brake rotor and brake support plate.
  13. Install the two bolts (1) securing disc brake caliper adapter (3) to the brake support plate (4). Tighten the mounting bolts to 71 N.m (52 ft. lbs.).
    Fig 8: BRAKE LINE MOUNTING TO TRAILING LINK
    GC0052907Courtesy of CHRYSLER LLC
  14. Position the brake tube on the trailing link inserting the tube into the routing clip (2) and routing bracket over the welded stud.
  15. Install the nut (1) on the welded stud. Tighten the nut to 15 N.m (11 ft. lbs.).
    Fig 9: BRAKE HOSE MOUNTING TO TRAILING LINK
    GC0052906Courtesy of CHRYSLER LLC
  16. Position the brake flex hose (1) at the trailing link (3) bracket and install the mounting screw (2). Tighten the screw to 23 N.m (17 ft. lbs.).
    Fig 10: TIRE AND WHEEL MOUNTING
    GC0052876Courtesy of CHRYSLER LLC
  17. Install the tire and wheel assembly (1). Refer to INSTALLATION . Install and tighten the wheel mounting nuts (3) to 135 N.m (100 ft. lbs.).
  18. Lower the vehicle.
  19. Perform wheel alignment as necessary. See STANDARD PROCEDURE .
