Engine Block Heater-Removal

Fig 1: AIR CLEANER INLET
GC0053117Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Remove air cleaner inlet.

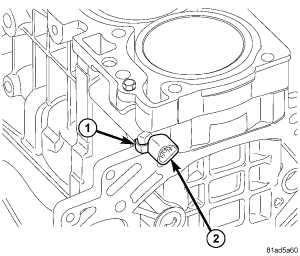

    Fig 2: BLOCK HEATER 2.0/2.4L ENGINE
    GC0053118Courtesy of CHRYSLER LLC
    1 - RETAINING CLIP
    2 - BLOCK HEATER
  3. Detach power cord plug from heater.
  4. Remove retaining clip (1). Remove block heater assembly (2).
