Engine & Automatic Transmission Cooling System: Engine: Pump-Water: Installation: Installation-Diesel

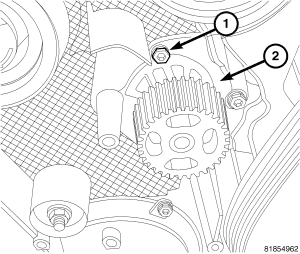

Fig 1: WATER PUMP - 2.0L DIESEL

Courtesy of CHRYSLER LLC

1 - BOLT

2 - WATER PUMP

1. Clean the O-ring mating surfaces on water pump (2) and front of timing chain cover.
2. Install O-ring onto water pump (2).
3. Apply a small amount of petroleum jelly to lubricate O-ring.
4. Install water pump and mounting bolts. Tighten bolts (1) to mounting bolts to 24 N.m (18 ft. lbs.).
5. Install timing belt. Refer to INSTALLATION .
