Gearshift Boot

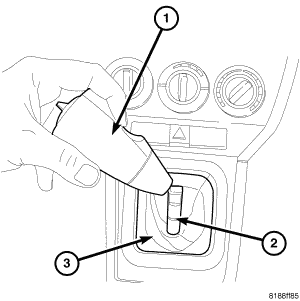

Fig 1: SHIFTER KNOB MT
GC0056365Courtesy of CHRYSLER LLC
  1. Position gearshift boot (3) over the operating lever (2) and apply hand pressure to engage and snap console into place.
  2. Position gearshift knob (1) hole over the gearshift mechanism and align the shift pattern.
  3. Verify that shift pattern is aligned properly.
  4. Strike knob (1) with rubber mallet to engage knob to mechanism.
