Gearshift Cable Assembly

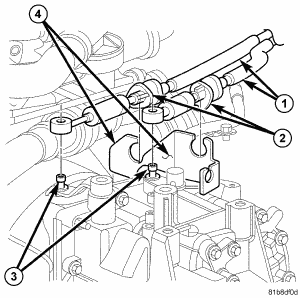

Fig 1: CABLES AT TRANS
GC0056436Courtesy of CHRYSLER LLC
CAUTION: Gearshift cable bushings must not be lubricated or the bushings will swell and split.
  1. Install cable assembly through floor pan opening and secure to floor pan with grommet plate.
  2. Route transaxle end of cable assembly into engine compartment and over transaxle assembly.
  3. Connect cables (1) to the shift levers (3) at the transaxle.
  4. Install cables (1) to bracket (4).
    Fig 2: CABLE CLIPS AT FLOOR PAN
    GC0056367Courtesy of CHRYSLER LLC
  5. Install gearshift cables (1).
  6. Install ORC. Refer to INSTALLATION .
  7. Install shifter. Refer to INSTALLATION .
  8. Install battery tray.
  9. Install battery and hold-down clamp.
  10. Install the air cleaner assembly.
  11. Connect battery cables.
