Rear Driveline Module

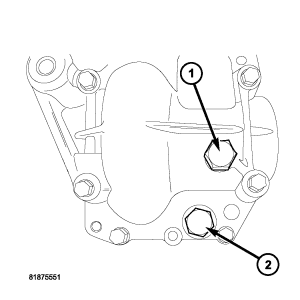

Fig 1: DRAIN AND FILL PLUGS
GC0052953Courtesy of CHRYSLER LLC
  1. Remove fill plug (1) and drain plug (2). Drain fluid.
  2. Install drain plug (2) and tighten to 32 N.m (24 ft. lb.).
  3. Fill with MOPAR® MS9020 SAE 80W90 Gear Lube to bottom of fill plug.
  4. Install fill plug (1) and tighten to 32 N.m (24 ft. lb.).
