Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.
Fig 1: AIR CLEANER ASSEMBLY
GC0053051Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable (2).
  2. Remove the engine trim cover.
  3. Remove air cleaner assembly (1).
  4. Remove Power Distribution Center (PDC) from bracket.
  5. Raise the vehicle on the hoist.
  6. Remove front halfshafts. Refer to REMOVAL .

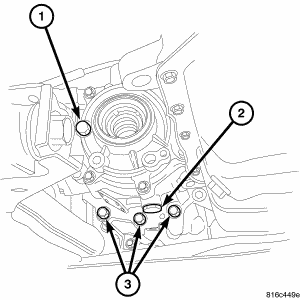

    Fig 2: PTU DRAIN - FILL PLUGS
    GC0056194Courtesy of CHRYSLER LLC
  7. Remove drain plug (2) at PTU and allow fluid to drain.
  8. Reinstall drain plug.

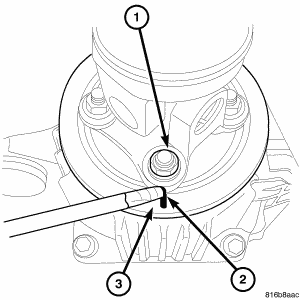

    Fig 3: MARK PROP SHAFT
    GC0052948Courtesy of CHRYSLER LLC
  9. Mark (2) prop shaft and differential (3) for proper installation.
  10. Remove the rear prop shaft. Refer to REMOVAL .

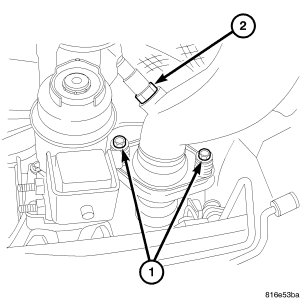

    Fig 4: EXHAUST TO MANIVERTER BOLTS
    GC0056195Courtesy of CHRYSLER LLC
  11. Remove the two exhaust to maniverter (exhaust manifold with catalytic converter) bolts (1).
  12. Unplug the downstream O2 sensor connector.
  13. Remove the exhaust system. Refer to REMOVAL .
  14. Lower the vehicle on the hoist.
  15. Unplug the upstream O2 sensor connector.

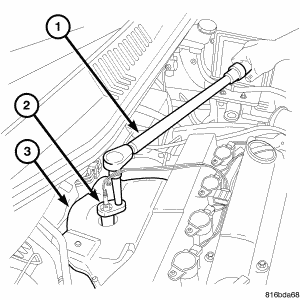

    Fig 5: USE O2 SENSOR TOOL - 8439
    GC0056196Courtesy of CHRYSLER LLC
  16. Remove upstream O2 sensor from the maniverter (exhaust manifold with catalytic converter) using O2s (Oxygen Sensor) Remover/Installer 8439 (2).

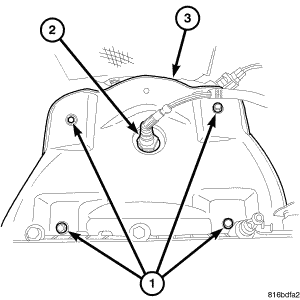

    Fig 6: MANIVERTER HEAT SHIELD AND BOLTS
    GC0056197Courtesy of CHRYSLER LLC
  17. Remove the four maniverter heat shield bolts (1).

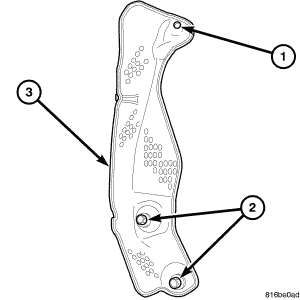

    Fig 7: MANIVERTER SIDE HEAT SHIELD
    GC0056198Courtesy of CHRYSLER LLC
  18. Remove the two retaining bolts (2) and one nut (1) from the maniverter side heat shield (3).

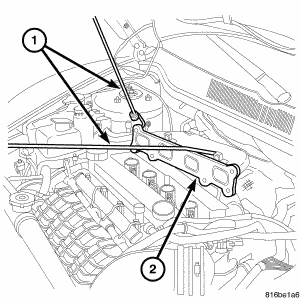

    Fig 8: SUPPORT MANIVERTER
    GC0056199Courtesy of CHRYSLER LLC
  19. Remove the seven maniverter to head retaining bolts.
  20. Slide the maniverter up and to the right, support the maniverter (1) with the help of a bungie cord.

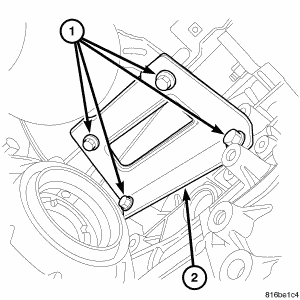

    Fig 9: MANIVERTER TO BLOCK SUPPORT BRACKET
    GC0056200Courtesy of CHRYSLER LLC
  21. Raise the vehicle on the hoist.
  22. Remove the four (1) engine to maniverter bracket bolts.
    Fig 10: REAR ENGINE MOUNT
    GC0056201Courtesy of CHRYSLER LLC
  23. Remove the rear engine mount through bolt (2).
  24. Remove the three front engine mount to frame bolts and the mount through bolt.
    Fig 11: PTU MOUNTING BOLTS
    GC0056202Courtesy of CHRYSLER LLC
  25. Remove the six PTU mounting bolts (2), three on the bottom and three on the top.
    Fig 12: JACK AT TRANS MOUNT
    GC0056203Courtesy of CHRYSLER LLC
  26. Install a screw jack (2) on front engine mount bracket (1).

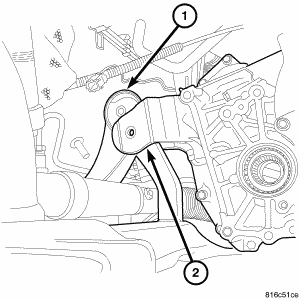

    Fig 13: REAR MOUNT NO BOLTS
    GC0056204Courtesy of CHRYSLER LLC
  27. Raise the front of the engine until the rear mount has dropped (1, 2).
  28. Separate the PTU from the transaxle.
  29. Remove and discard old O-ring between Transmission and PTU.
    Fig 14: REMOVE - INSTALL PTU
    GC0056205Courtesy of CHRYSLER LLC
  30. Roll the PTU (1) forward and down to remove.
