Installation

INSTALLATION
1. Position servo to mounting bracket.

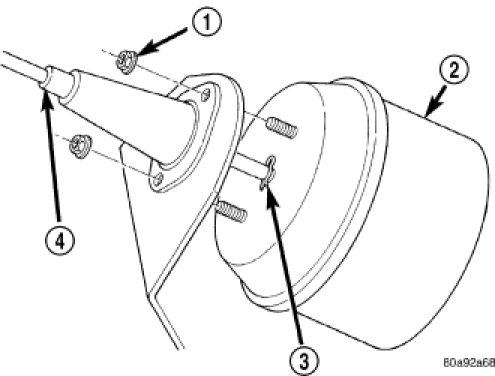

2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).

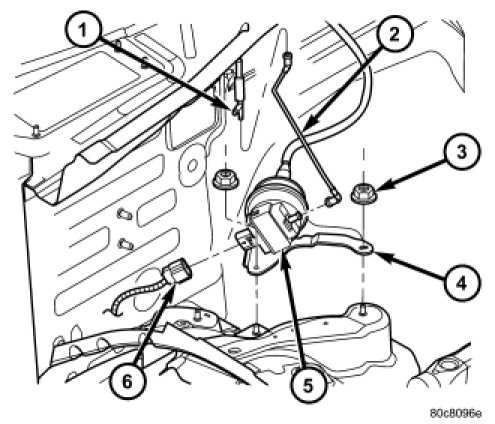

3. Insert servo mounting studs through holes in servo mounting bracket.

4. Install servo-to-mounting bracket nuts (1) and tighten. Refer to torque specifications.




5. Install servo mounting bracket-to-body nuts (3) and tighten. Refer to torque specifications.

6. Connect vacuum line (2) at servo.

7. Connect electrical connector (6) at servo.

8. Connect servo cable to throttle body.

9. Install coolant bottle.

10. Connect negative battery cable to battery.

11. Before starting engine, operate accelerator pedal to check for any binding.
