Installation

INSTALLATION

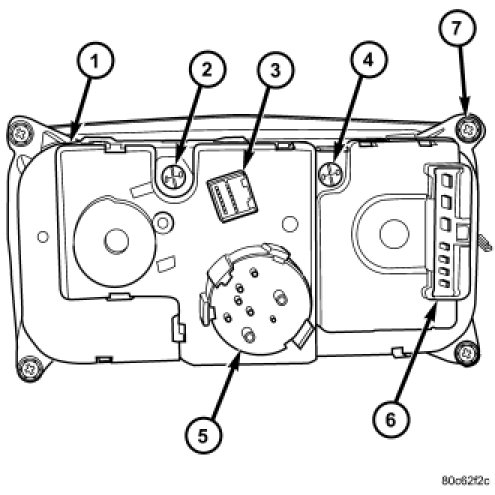

1. If removed, install the illumination lamps (2 and 4) into the rear of the A/C-heater control (1).

2. Connect the wire harness and vacuum connectors to the connections (3, 5 and 6) at the rear of the A/C-heater control.

3. Position the A/C-heater control into the instrument panel and install the four retaining screws at the locations shown (7). Tighten the screws to 2 Nm (17 in. lbs.).

4. Install the instrument panel center bezel.

5. Reconnect the negative battery cable.
