Module-Fuel Pump

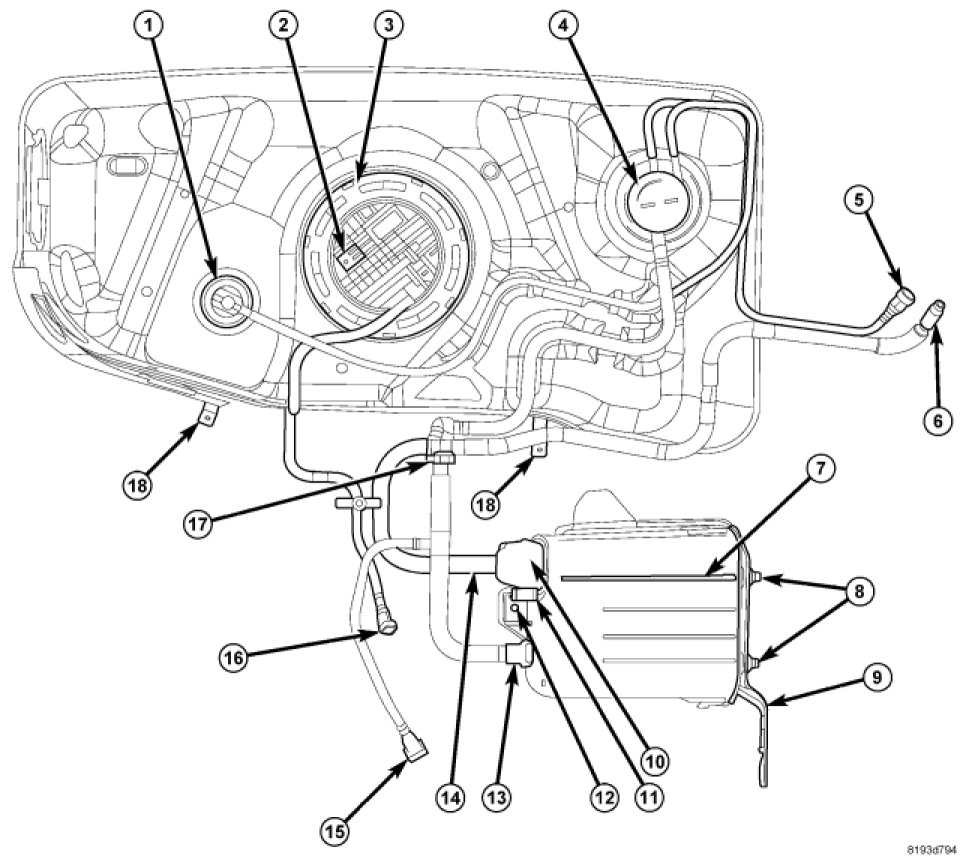

The fuel pump module assembly (2) is located on top of the fuel tank.

- A fuel pressure regulator.
- A built-in primary fuel filter.
- A separate fuel pick-up, or inlet filter.
- An electric fuel pump.
- A lockring (3) to retain pump module to tank.
- A soft gasket between tank flange and module.
- A fuel gauge sending unit (fuel level sensor).
- A fuel line connection.
