Knock Sensor: Locations

Component ID: 412
Component : SENSOR-KNOCK NO. 1

Connector:
Name : SENSOR-KNOCK NO. 1
Color :
# of pins : 2
Qualifier : (3.7L)




Pin Description Circuit
1 KNOCK SENSOR NO. 1 SIGNAL K42 20DB/OR
2 KNOCK SENSOR NO. 1 RETURN K942 20BR/LG

Component Location - 1

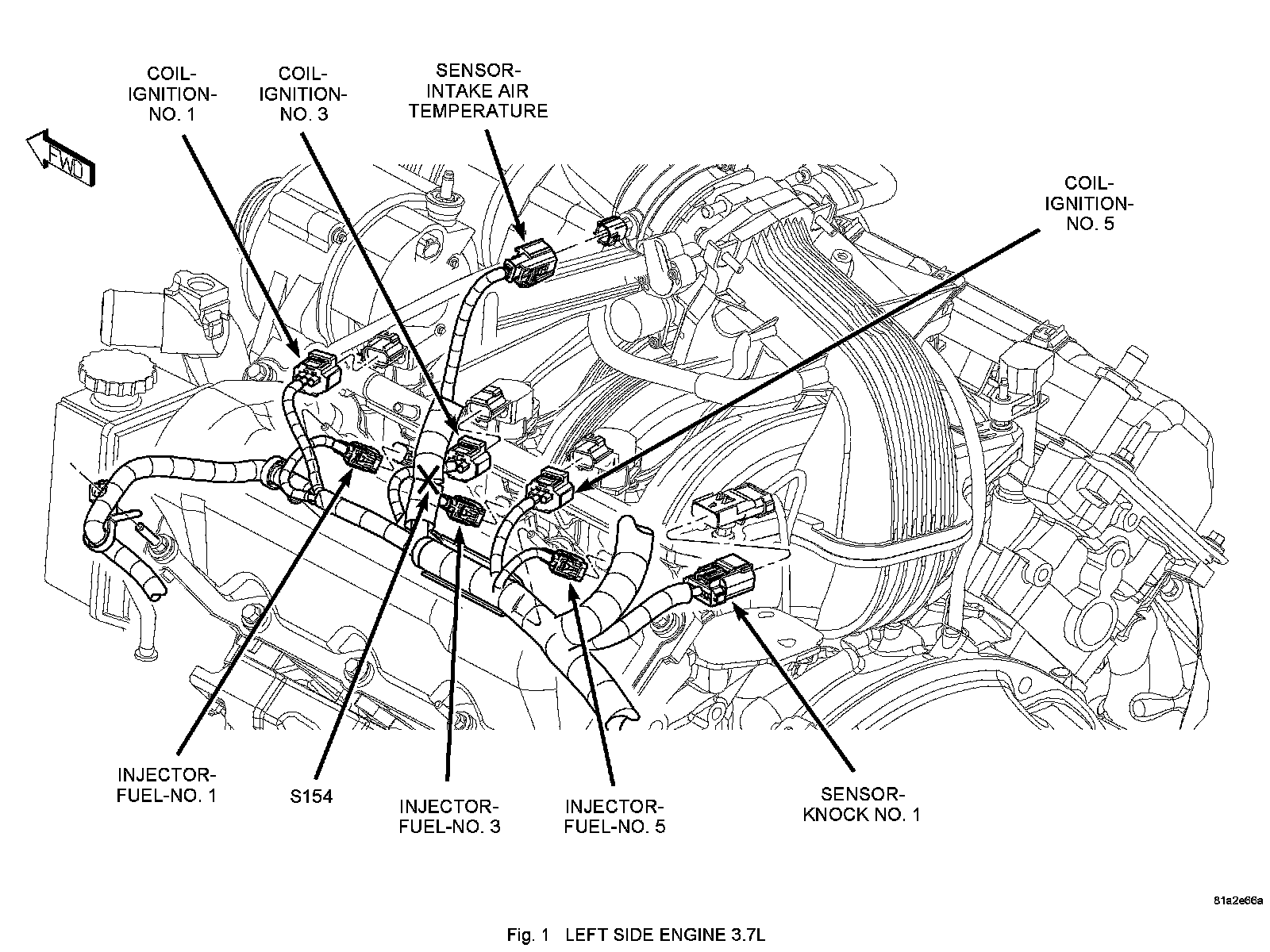

Fig. 1:
