Transmission Position Sensor/Switch: Diagrams

Component ID: 428
Component : SENSOR-TRANSMISSION RANGE

Connector:
Name : SENSOR-TRANSMISSION RANGE
Color :
# of pins : 10
Qualifier : (42RLE)




Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN) C115 20DB
2 - -
3 SPEED SENSOR GROUND T13 20DG/VT
4 TRANSMISSION TEMPERATURE SENSOR SIGNAL T54 20DG/OR
5 - -
6 BACKUP LAMP FEED L10 20WT/GY
7 TRS T1 SENSE T1 20DG/LB
8 TRS T3 SENSE T3 20DG/DB
9 TRS T42 SENSE T42 20DG/YL
10 TRS T41 SENSE (P/N) T41 20YL/DB

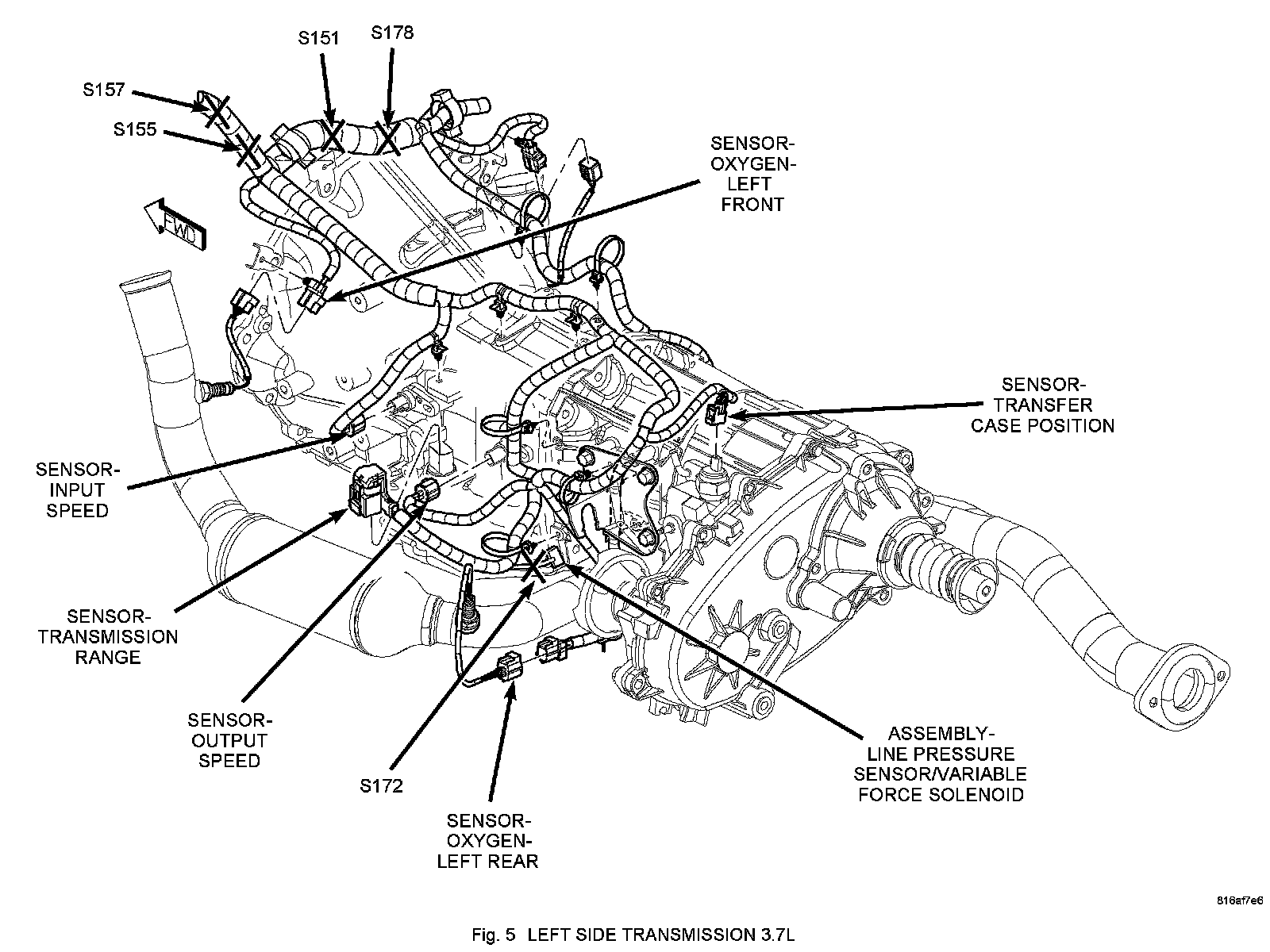

Component Location - 5

Fig. 5:
