System Specifications
42RLE AUTOMATIC TRANSMISSION
General Specifications:
Gear Ratios:
Bearing Preload (Drag Torque):
Clutch Pack:
Input Shaft:
Oil Pump Clearances:
Gear Train Measurements:

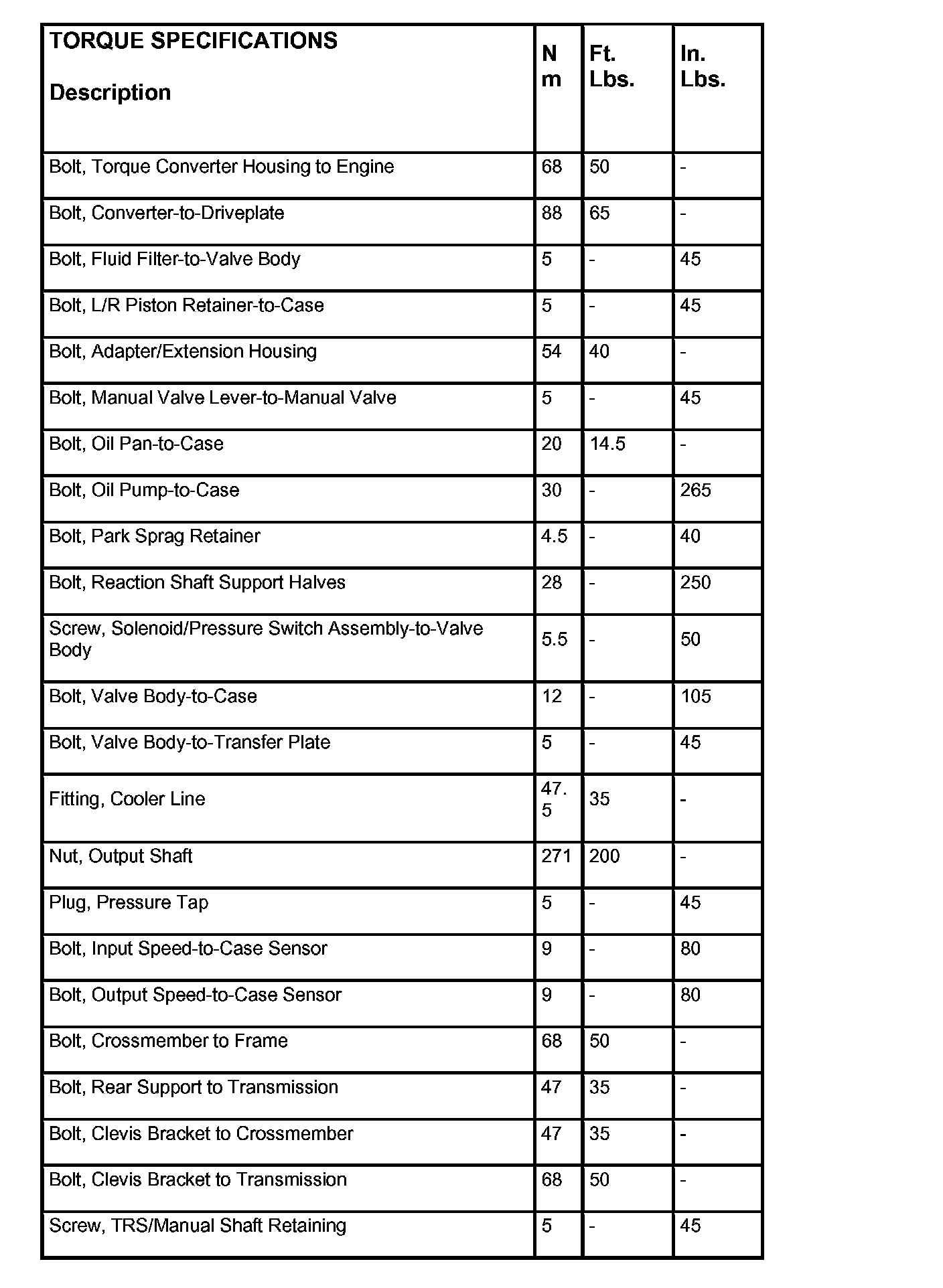

Torque Specifications (Part 1):
Torque Specifications (Part 2):
