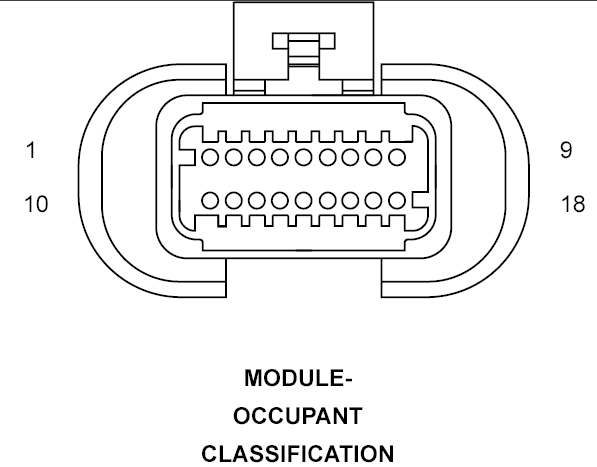

Occupant Classification Module Connector End View
MODULE-OCCUPANT CLASSIFICATION - 18-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | D105 20WT/OR | SEAT BELT TENSION SENSOR SIGNAL |
| 5 | Z105 18BK/LG | GROUND |
| 6 | R741 20LG/VT | PASSENGER BLADDER PRESSURE SENSOR SIGNAL |
| 7 | R740 20LG/OR | PASSENGER BLADDER PRESSURE SENSOR POWER |
| 8 | D25 20WT/VT | PCI BUS |
| 9 | F201 18LG/YL | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | R986 20LG/BR | SEAT BELT TENSION SENSOR GROUND |
| 15 | R941 20LG/DG | PASSENGER BLADDER PRESSURE SENSOR GROUND |
| 16 | R86 20LG/LB | SEAT BELT TENSION SENSOR POWER |
| 17 | - | - |
| 18 | - | - |
