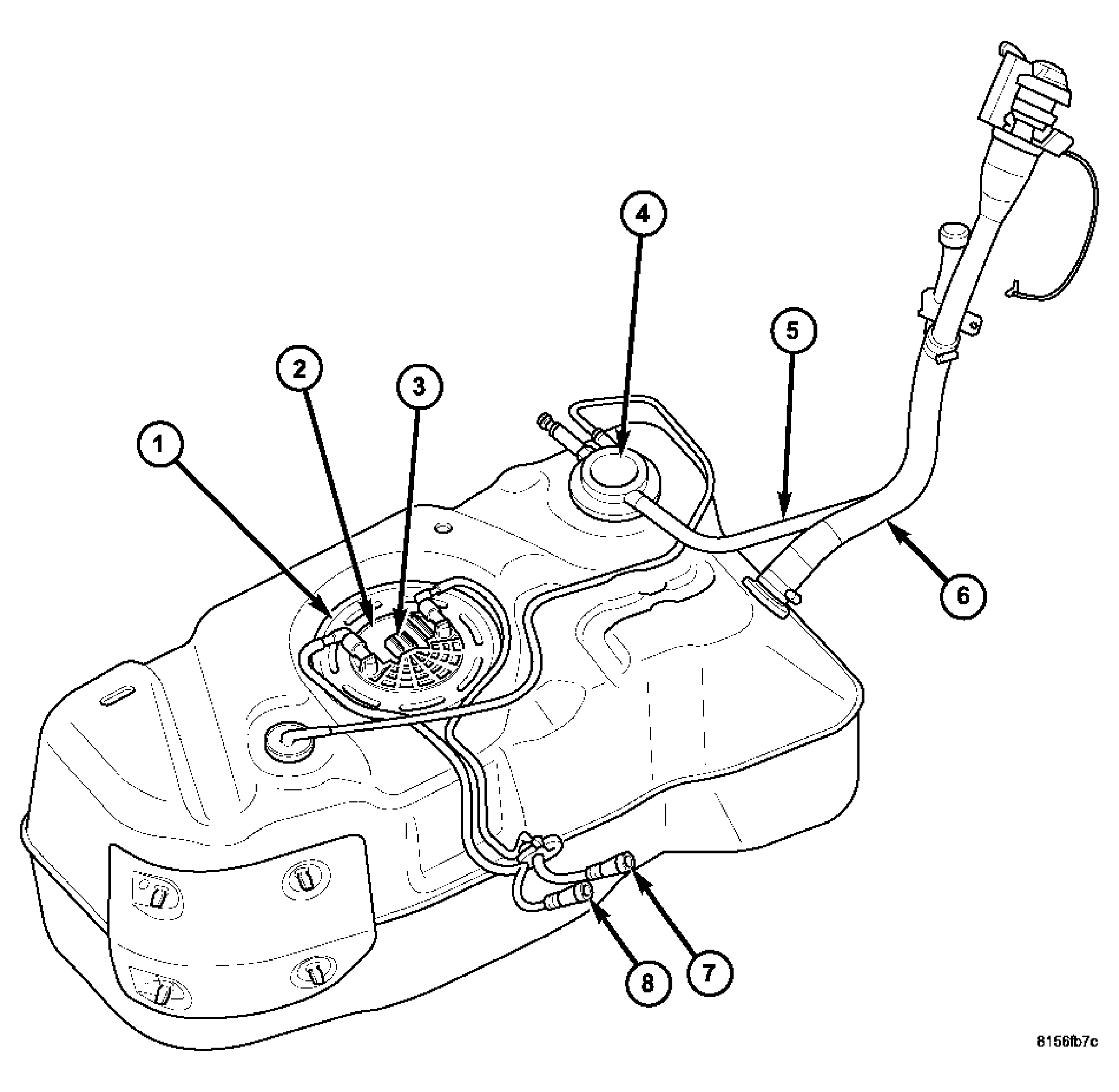

Fuel Tank Module
| 1 - LOCKRING |
| 2 - FUEL TANK MODULE |
| 3 - ELECTRICAL CONNECTOR |
| 4 - CHECK VALVE |
| 5 - FUEL VENT HOSE |
| 6 - FUEL FILL HOSE |
| 7 - FUEL RETURN LINE CONNECTION |
| 8 - FUEL SUPPLY LINE CONNECTION |
The fuel tank module (2) is installed in the top of the fuel tank. The fuel tank module contains the following components: See Fig 1.
- Fuel reservoir
- A separate in-tank fuel filter
- Fuel gauge sending unit (fuel level sensor)
- A special lockring (1) to retain module to fuel tank See Fig 1.
- Fuel supply line connections
- Fuel return line connections
A separate electric fuel pump (sometimes referred to as a low-pressure fuel transfer or lift pump) is not attached to the fuel tank module. Instead, a gear supply pump is mounted to the rear of the high-pressure fuel injection pump. This supply pump draws fuel under a vacuum; through the fuel filter; and from the fuel tank. Refer to Fuel Injection Pump for additional information.
