Fuel Pump Module

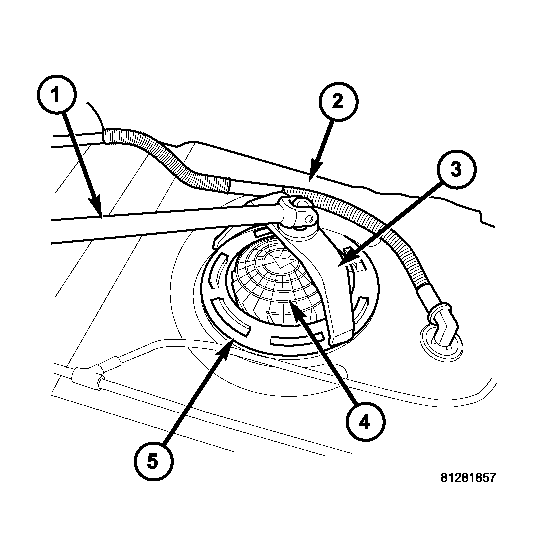

Fig 1: Fuel Pump Module Location

Courtesy of CHRYSLER LLC

1 - 1/2 Inch Breaker Bar

2 - Top of Fuel Tank (Typical)

3 - Special Tool #9340

4 - Fuel Pump Module

5 - Lockring

A typical fuel pump module is displayed in the graphic.

Using a new seal (gasket), position fuel pump module into opening in fuel tank.
Position lockring (5) over top of fuel pump module.
Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank.
Install Lockring Remover/Installer 9340 (3) to lockring.
Install 1/2 inch drive breaker (1) into Lockring Remover/Installer 9340 (3).
Tighten lockring (clockwise) until all seven notches have engaged.
Install fuel tank. See INSTALLATION .
