Jeep
>>
2007
>>
Liberty Limited, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0325 To P0501 - Gas
>>
P0461-Fuel Level Sensor 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

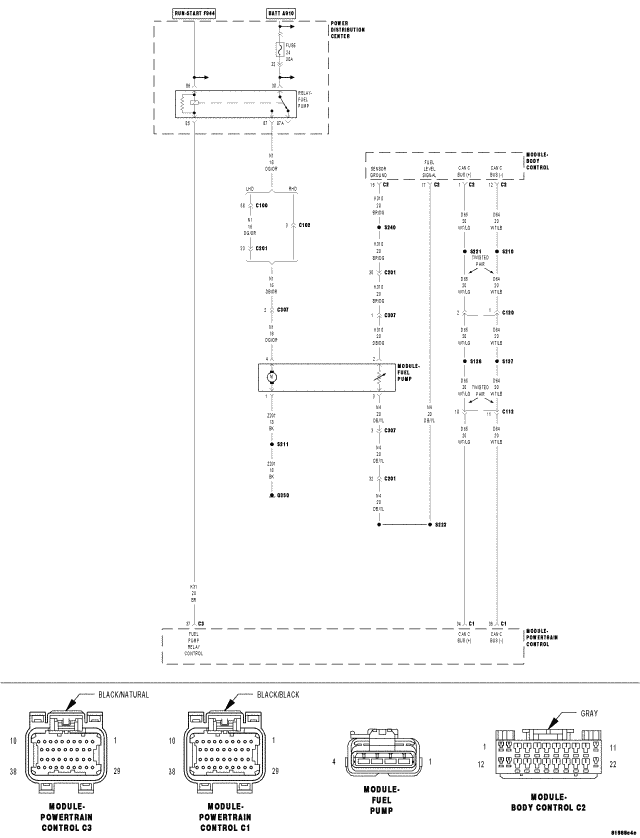

Fig 1: Fuel Level Sensor Signal Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
