DTCS P2123 To P2610 - Gas
>>
P2271-O2 Sensor 1/2 Signal Stuck Rich
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

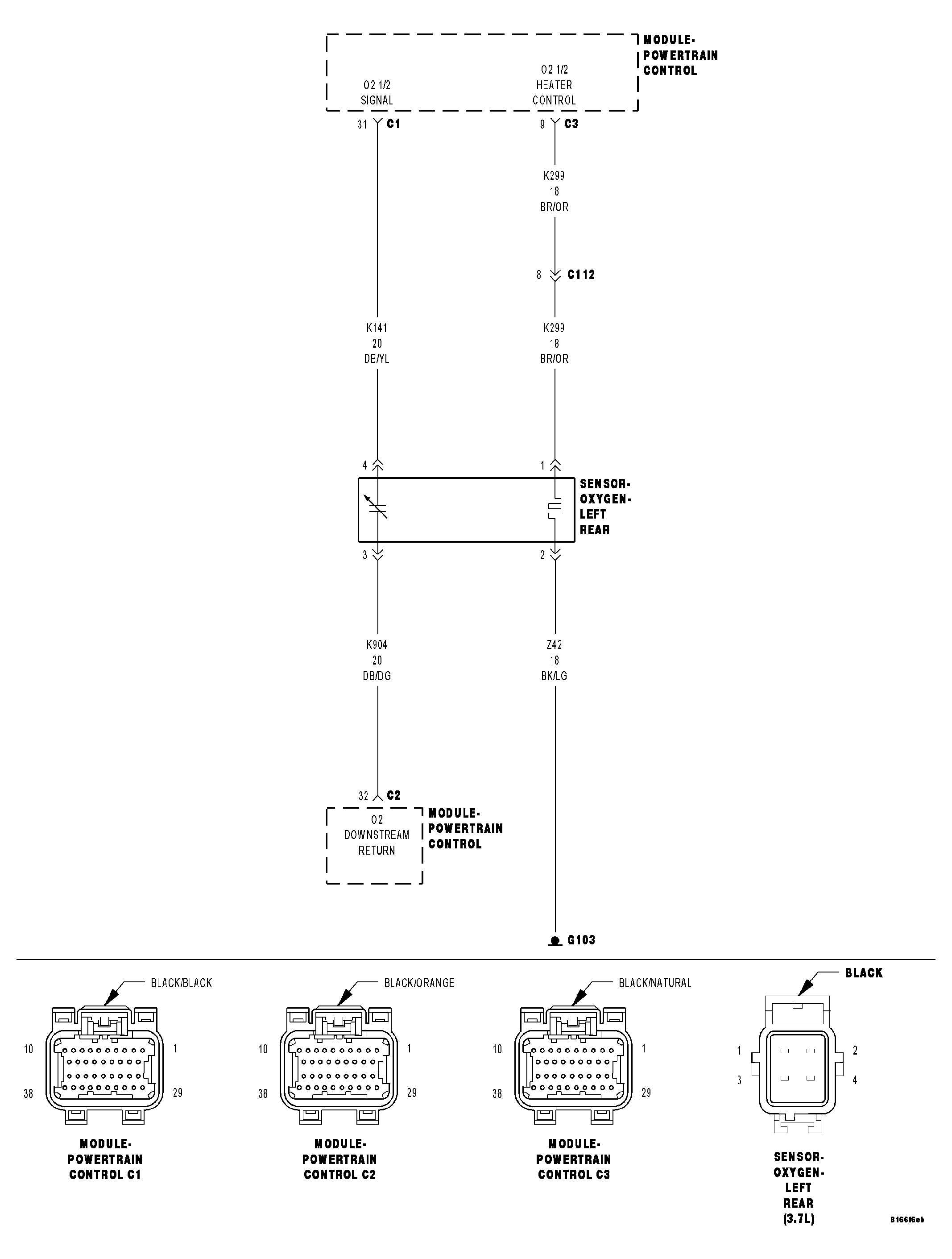

Fig 1: Left Rear O2 Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
