Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

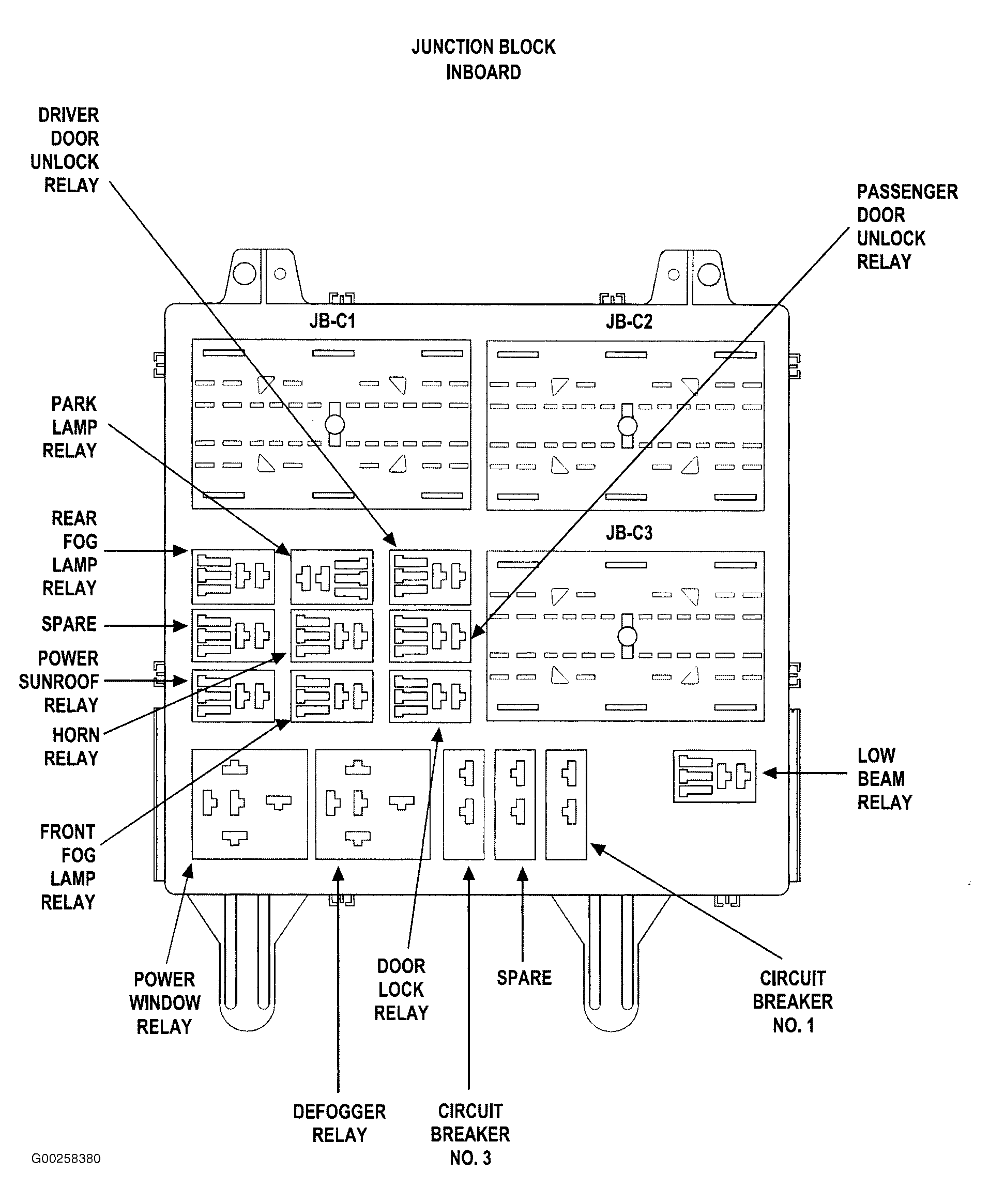

| Circuit Breaker No. 1 |
Junction block. See Figure. |
| Circuit Breaker No. 3 |
Junction block. See Figure. |
| Junction Block |
Left side of dash. |

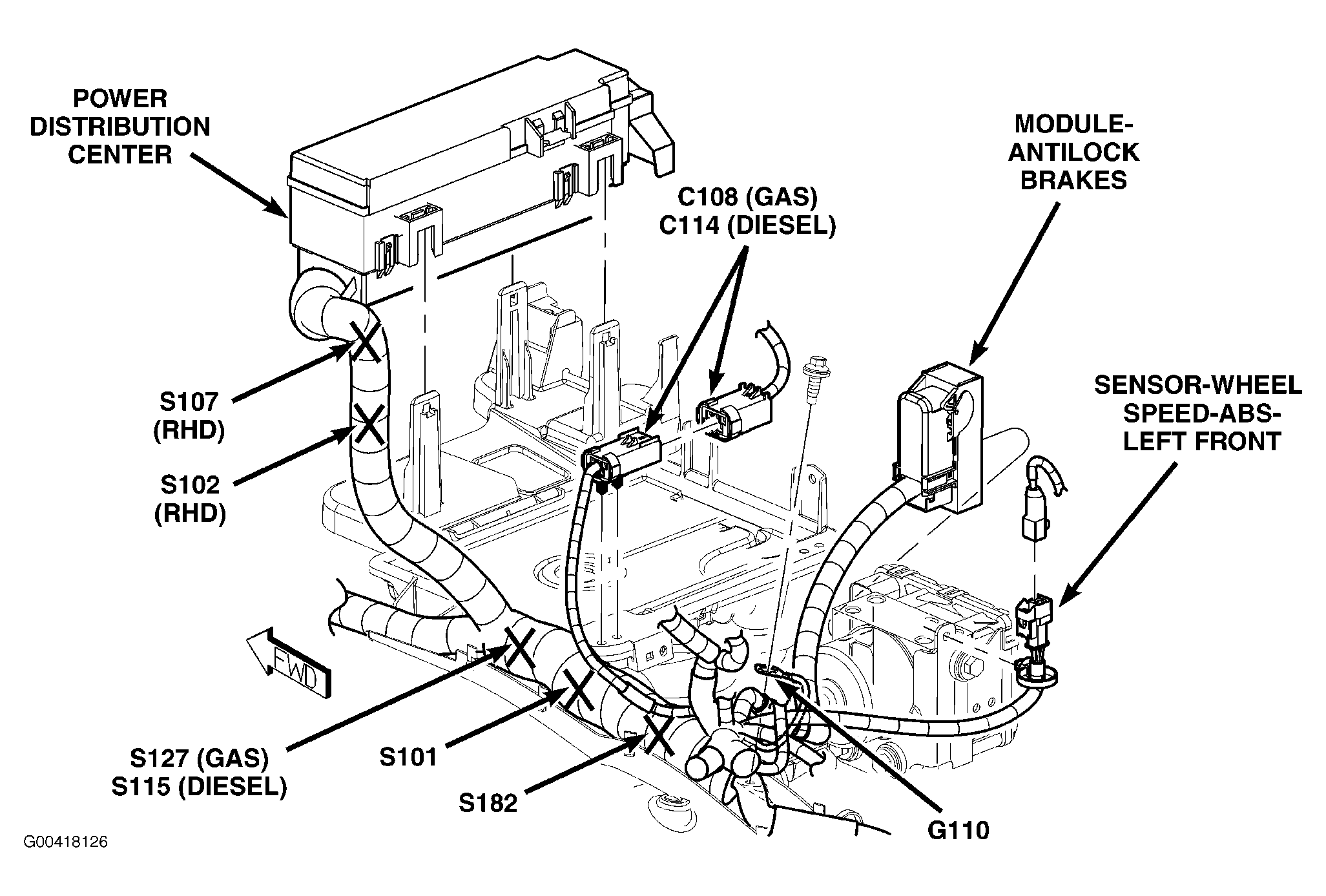

| Power Distribution Center |
Left side of engine compartment. See Figure. |
