Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Antilock Brake Module | Left side of engine compartment. See Figure. |

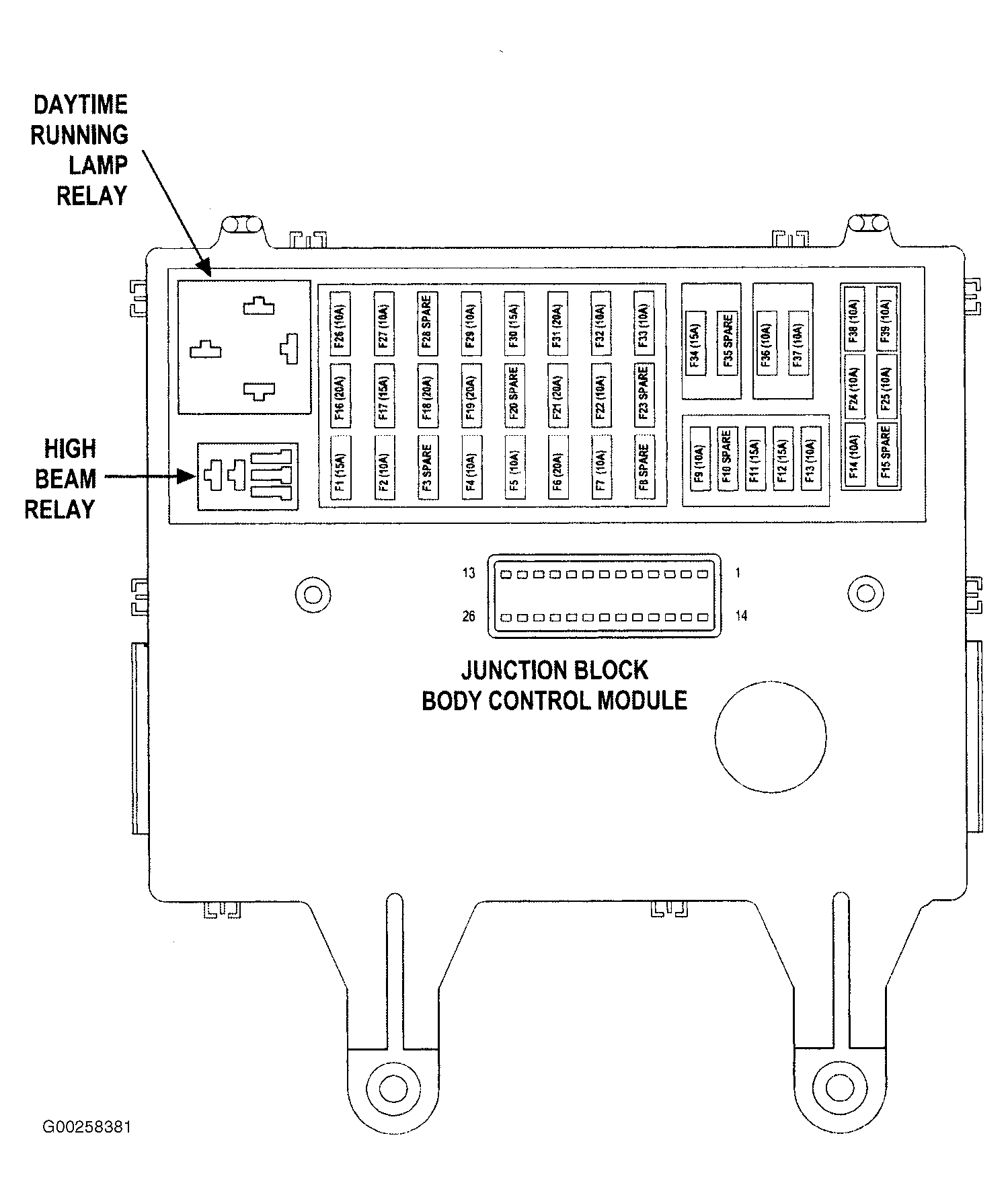

| Body Control Module | Integral with outboard junction block. See Figure. |

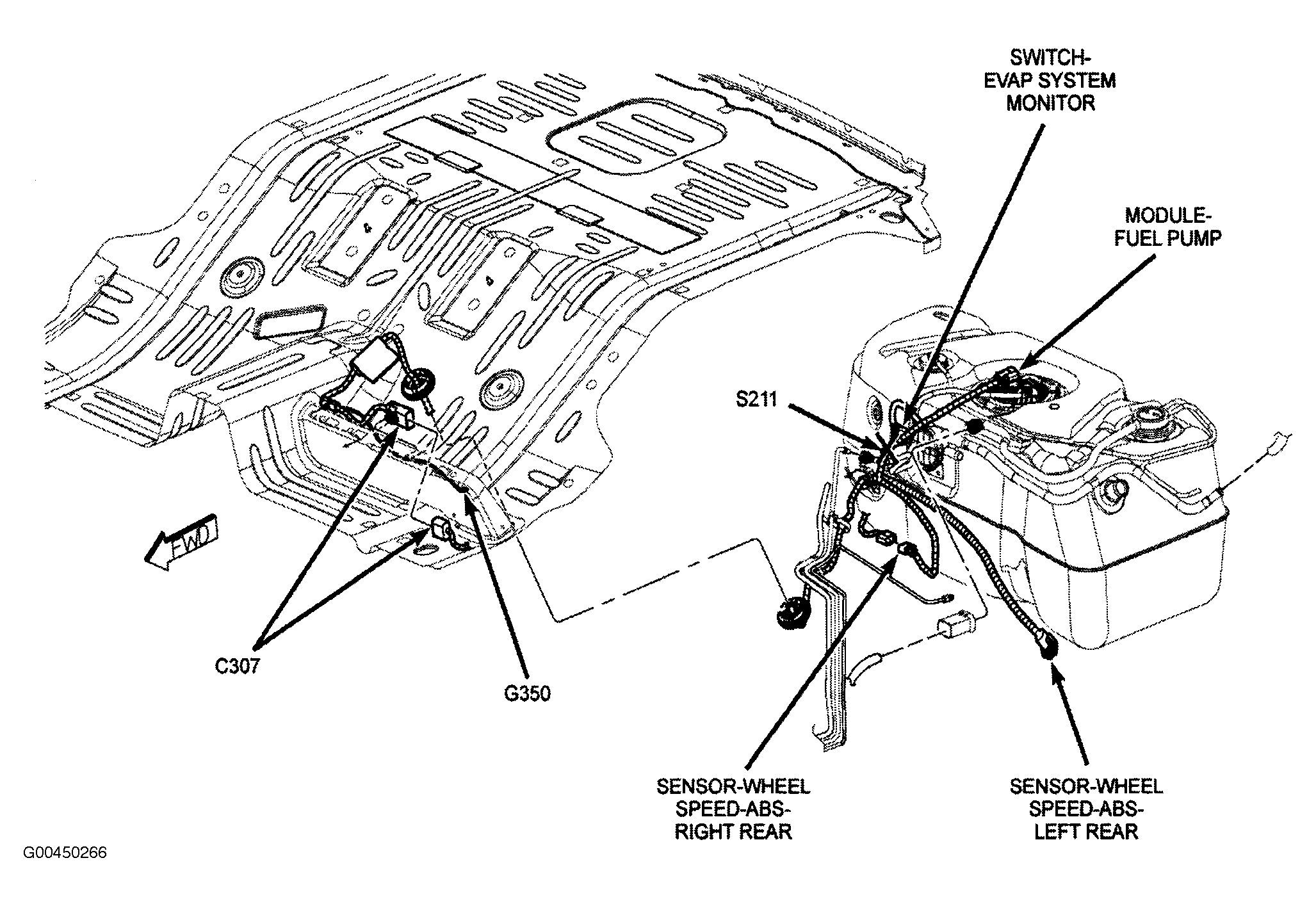

| Fuel Pump Module | In fuel tank. See Figure. |

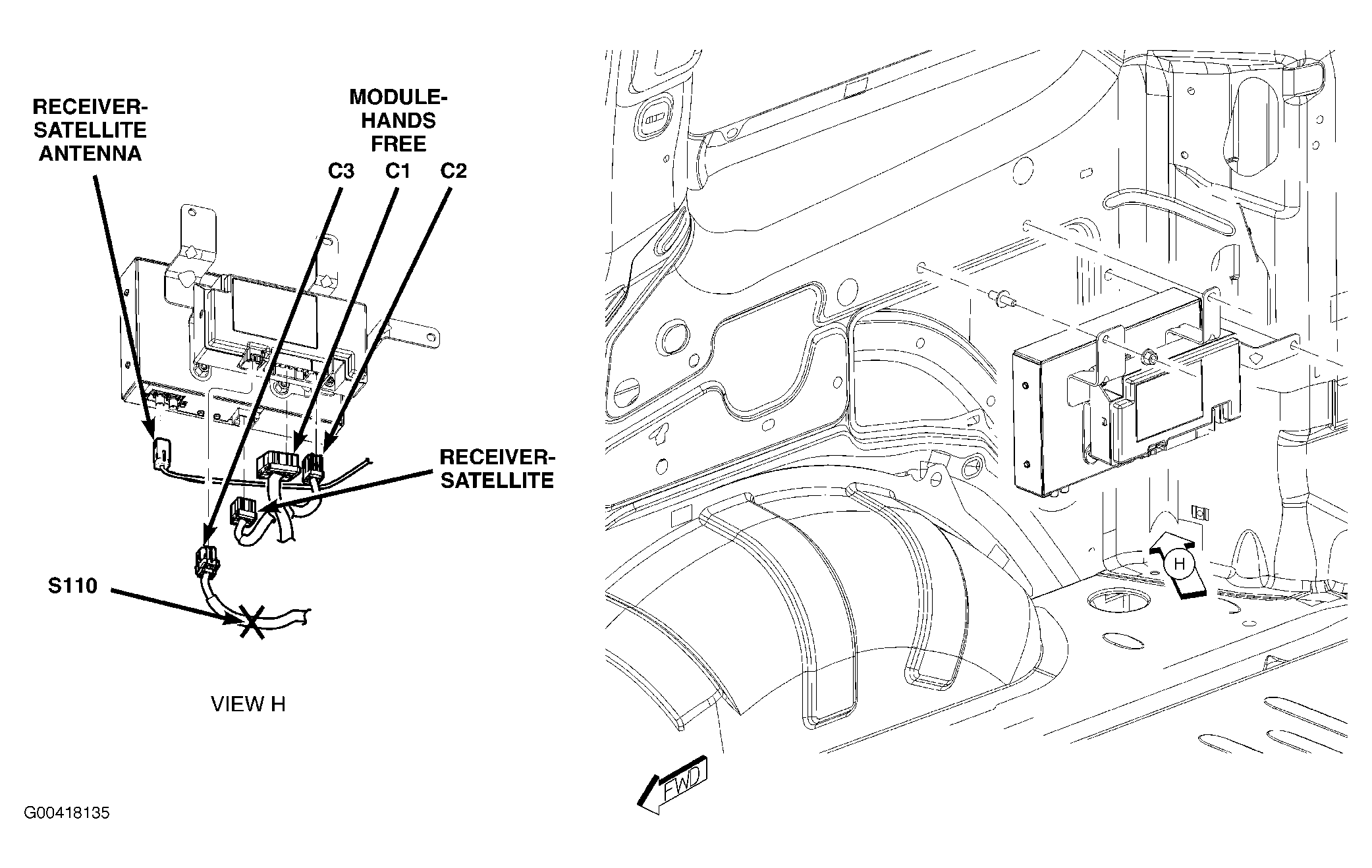

| Hands Free Module | Right rear side of cargo area. See Figure. |
| Heated Seat Module (Highline) | Under left front seat. |

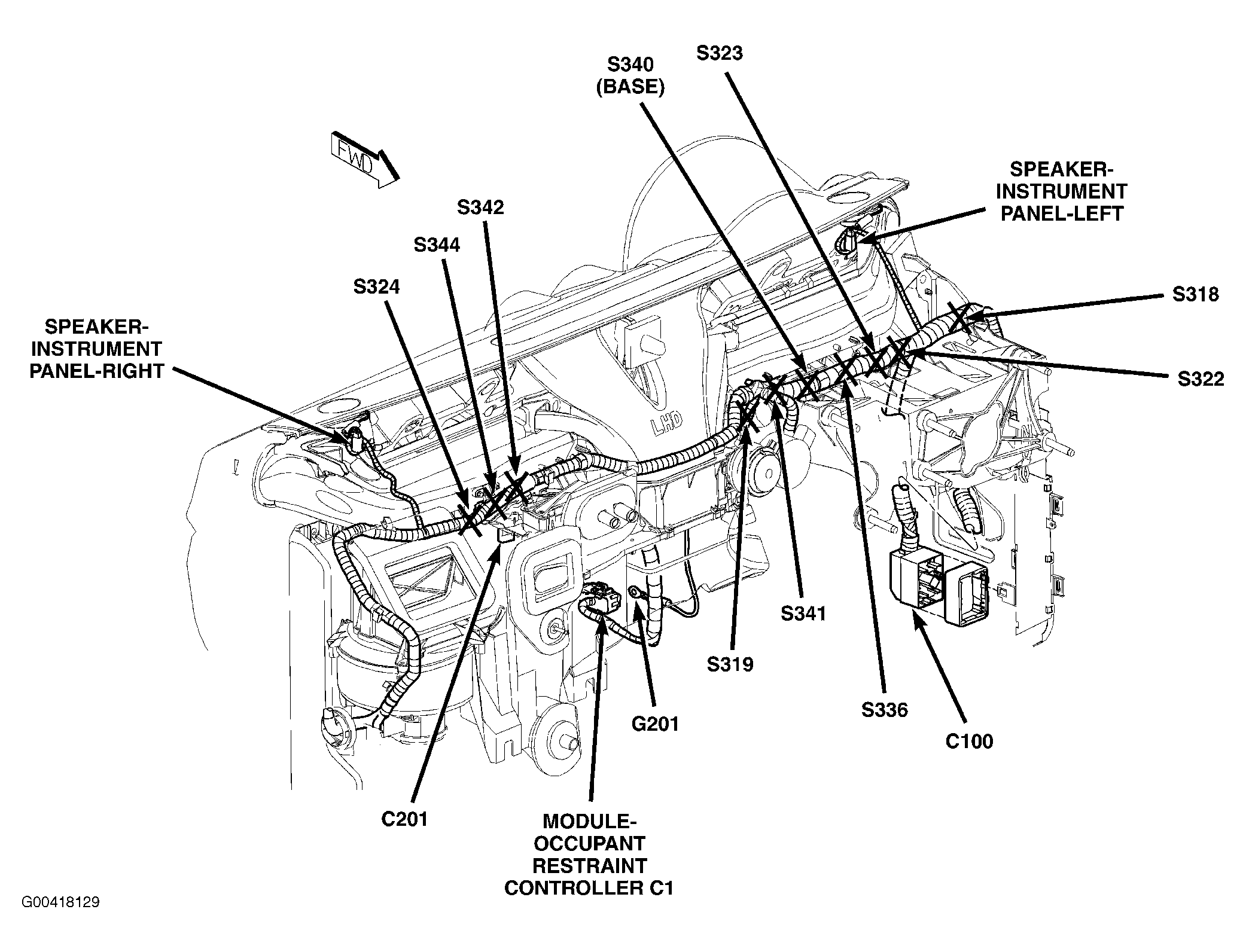

| Occupant Restraint Control Module | Under center console. See Figure. |

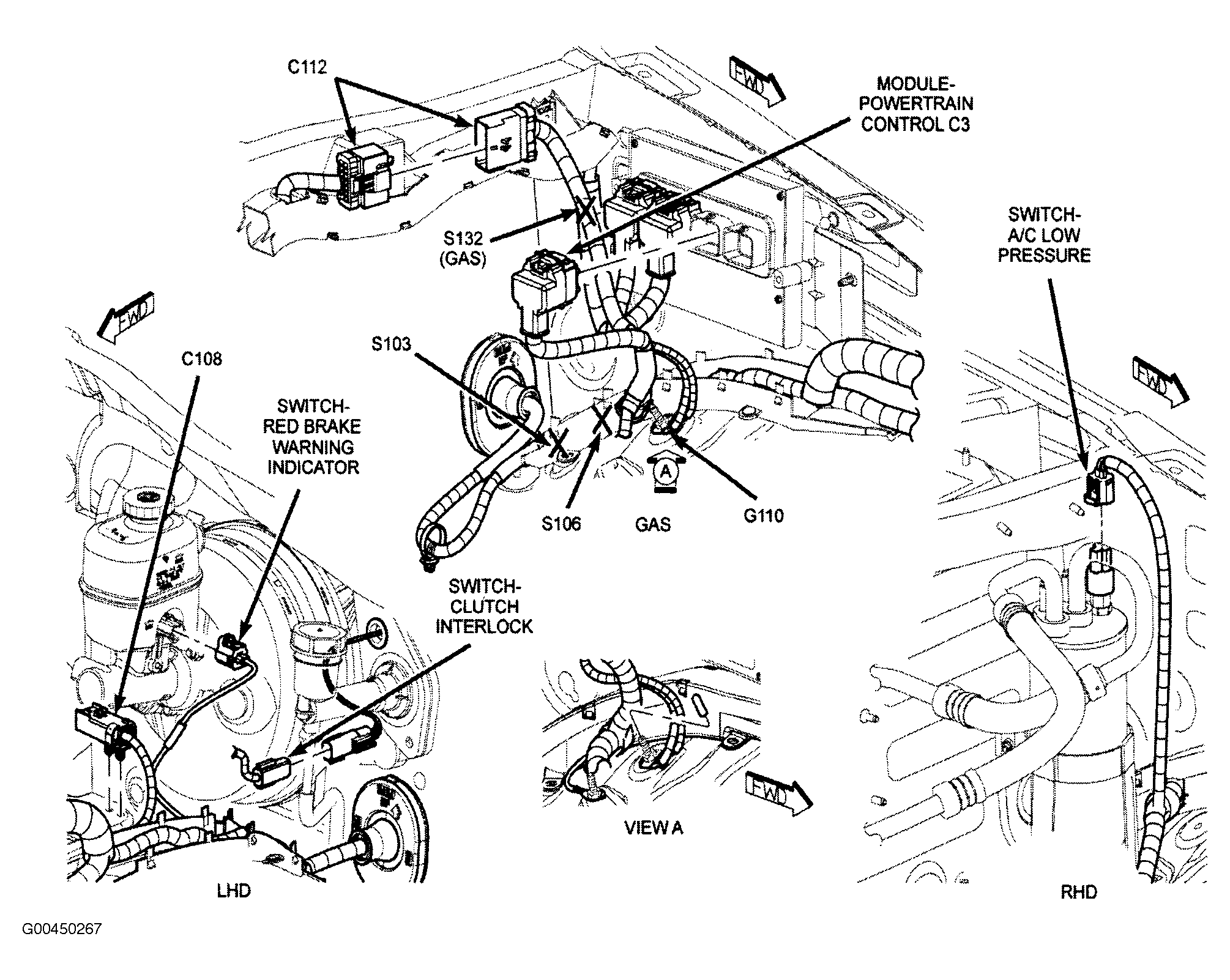

| Powertrain Control Module | Left side of engine compartment. See Figure. |
| Satellite Antenna Receiver | Right rear side of cargo area. See Figure. |
| Sentry Key Remote Entry/WCM | Behind left side of dash. |
