Removal-Non Pressure System

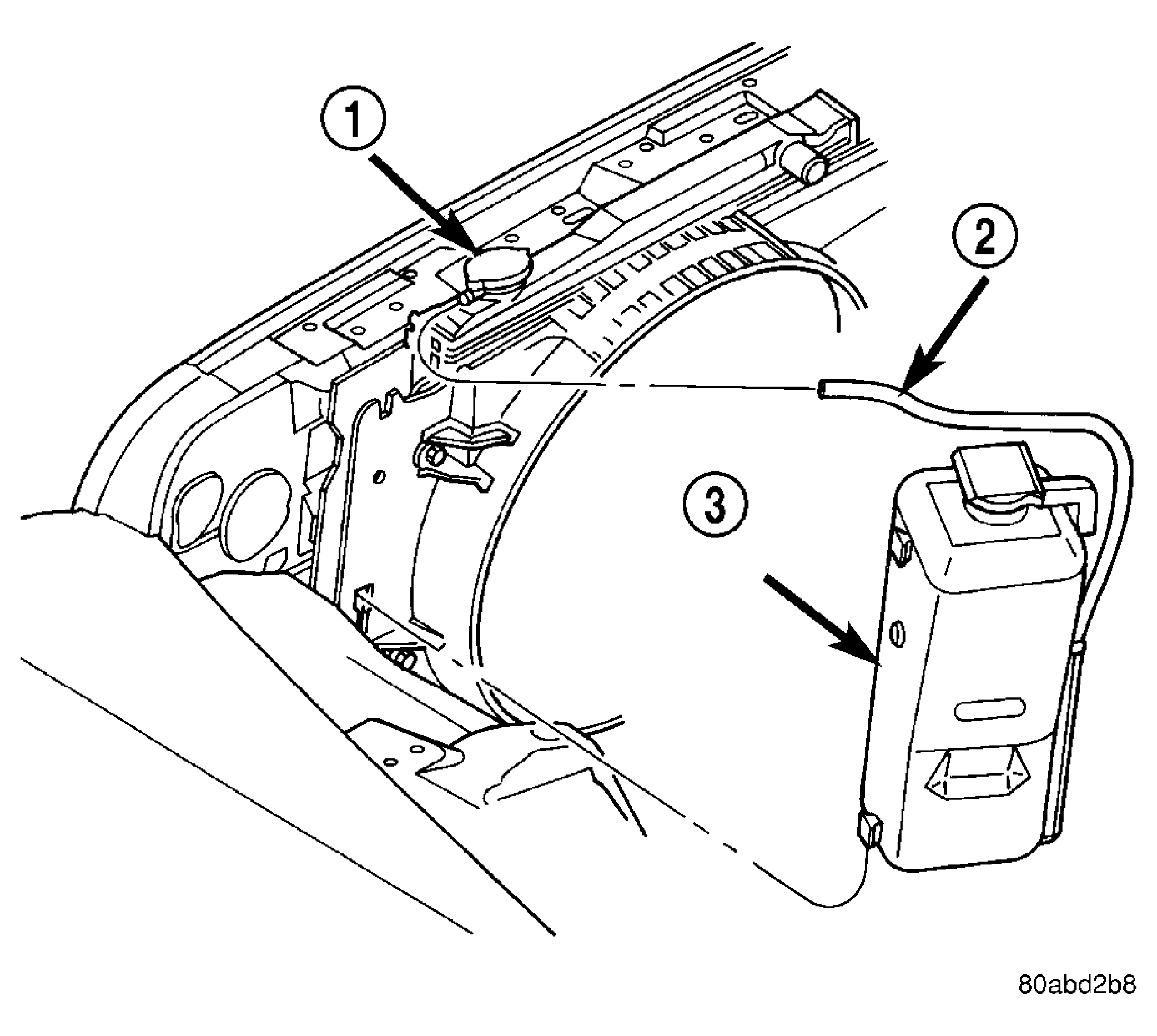

Fig 1: Coolant Reserve/Overflow Bottle
GC0025171Courtesy of CHRYSLER LLC
1 - RADIATOR PRESSURE CAP
2 - HOSE
3 - COOLANT RECOVERY BOTTLE
  1. Remove hose (2) from radiator.
  2. Remove recovery container mounting bolts.
  3. Remove recovery container (3).
