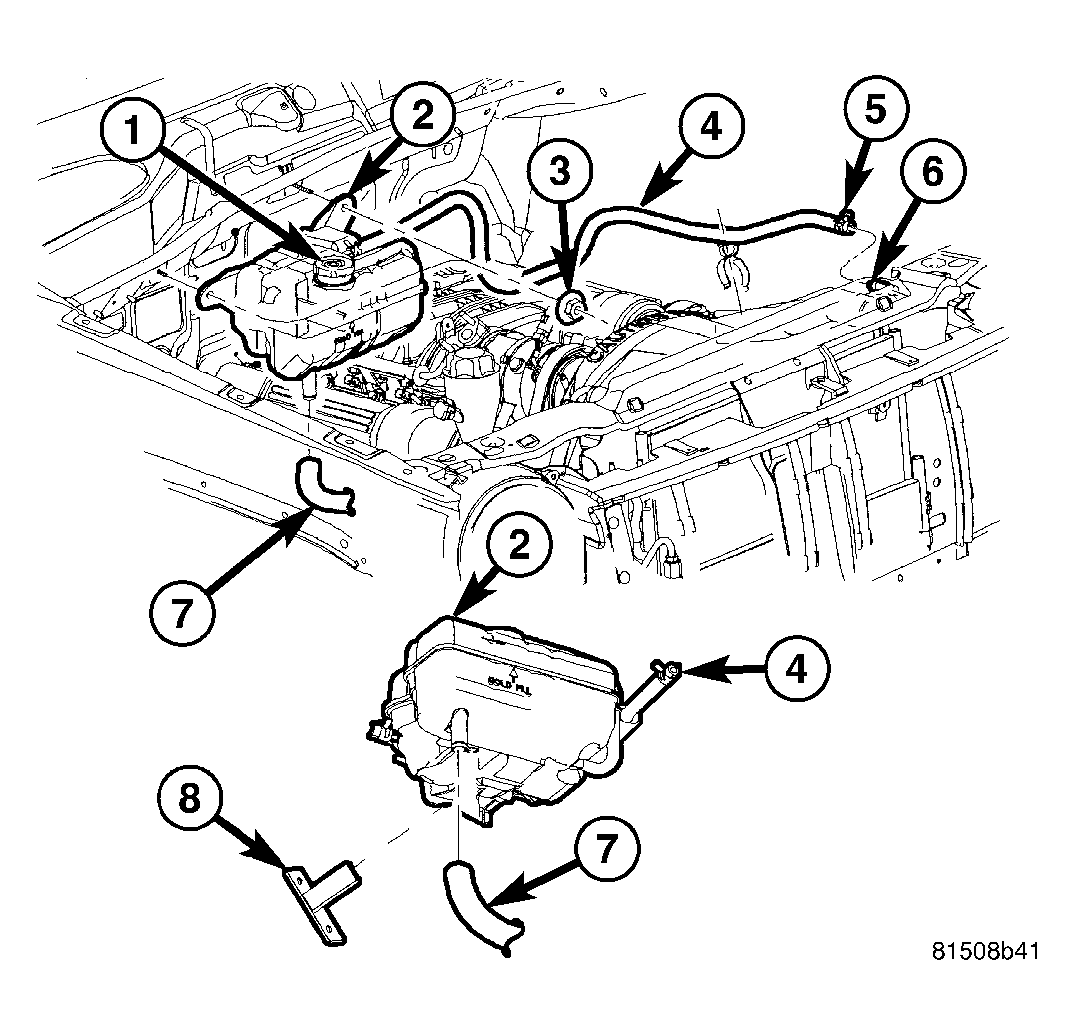

Removal-Pressure System
| 1 - PRESSURE CAP |
| 2 - COOLANT BOTTLE |
| 3 - MOUNTING NUTS |
| 4 - COOLANT BOTTLE TO RADIATOR HOSE |
| 5 - CLAMP |
| 6 - RADIATOR |
| 7 - LOWER HOSE |
| 8 - MOUNTING BRACKET |
- Remove pressure cap from bottle.
- Siphon coolant from pressure bottle (2) into a contaminant free container.
- Disconnect coolant bottle to radiator hose at coolant bottle.
- Disconnect lower hose at coolant bottle.
- Remove mounting nuts.
- Remove coolant bottle from bracket.
