Engine & Automatic Transmission Cooling System: Engine: Fan-Radiator-Electric: Installation: Installation

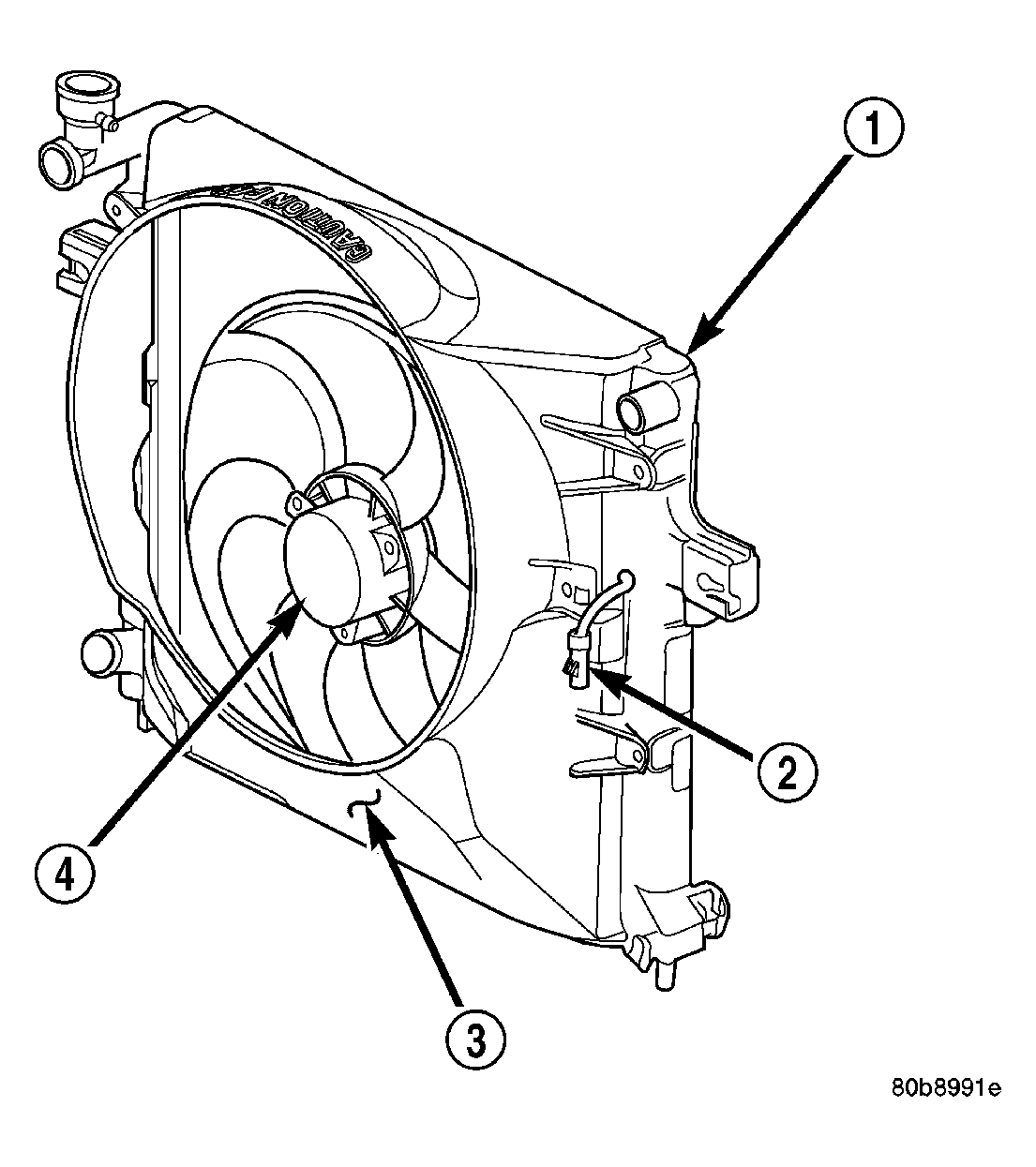

Fig 1: Radiator Cooling Fan - Typical

Courtesy of CHRYSLER LLC

1 - RADIATOR

2 - ELECTRIC COOLING FAN CONNECTOR

3 - FAN SHROUD

4 - 2 SPEED ELECTRIC COOLING FAN

1. Install fan shroud assembly into the vehicle. Tighten fan shroud to radiator bolts to (5.5 N.m (50 in. lbs.).
2. Install shroud mounting bolts tighten bolts to 10 N.m (89 in. lbs.).
3. Connect fan motor wire connector to harness connector, and attach connector to shroud.
4. Connect battery negative cable.
5. Start engine and check fan operation.
