Automatic Shutdown (ASD) Relay

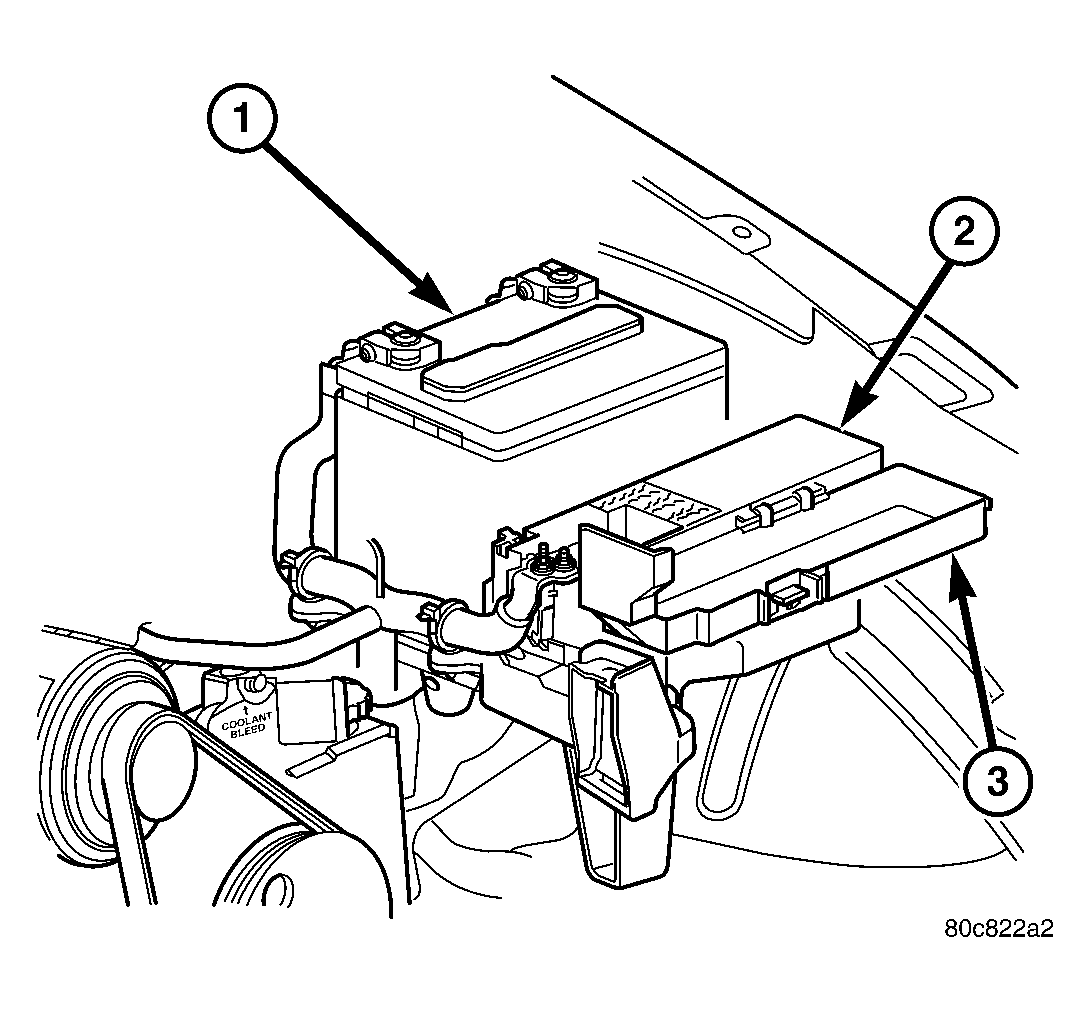

Fig 1: View Of Power Distribution Center (PDC)

Courtesy of CHRYSLER LLC

The ASD relay is located in the Power Distribution Center (PDC) (2). Refer to label on PDC cover for relay location.

1. Install relay to PDC.
2. Install cover (3) to PDC.
