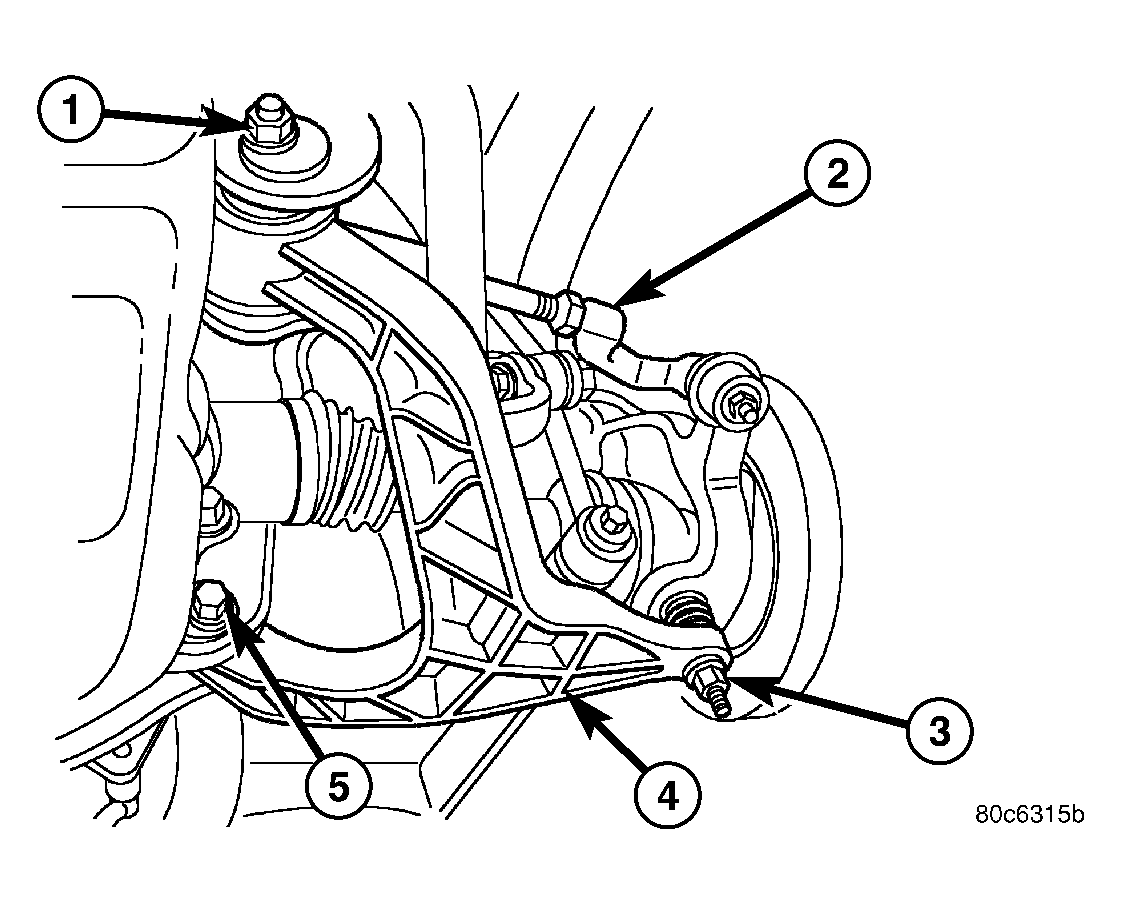

Lower Control Arm
Courtesy of CHRYSLER LLC
- Install the lower control arm (4) to the vehicle.
- Install the rear cam/pivot bolt (5).
- Install the front cam/pivot bolt (1).
- Install the lower ball joint nut (3). Tighten the nut to 81 N.m (60 ft. lbs.)
- Align the marks front and rear at the cam/pivot bolts and tighten the nuts. Tighten the nuts to 170 N.m (125 ft. lbs.)
- Install the stabilizer link bolt at the lower control arm. Tighten the nut to 136 N.m (100 ft. lbs.)
- Install the lower clevis bracket bolt at the lower control arm. Tighten the nut to 150 N.m (110 ft. lbs.)
- Install the tire and wheel assembly. Refer to STANDARD PROCEDURE
.
- Perform a wheel alignment. See STANDARD PROCEDURE .
