Circuit Schematic

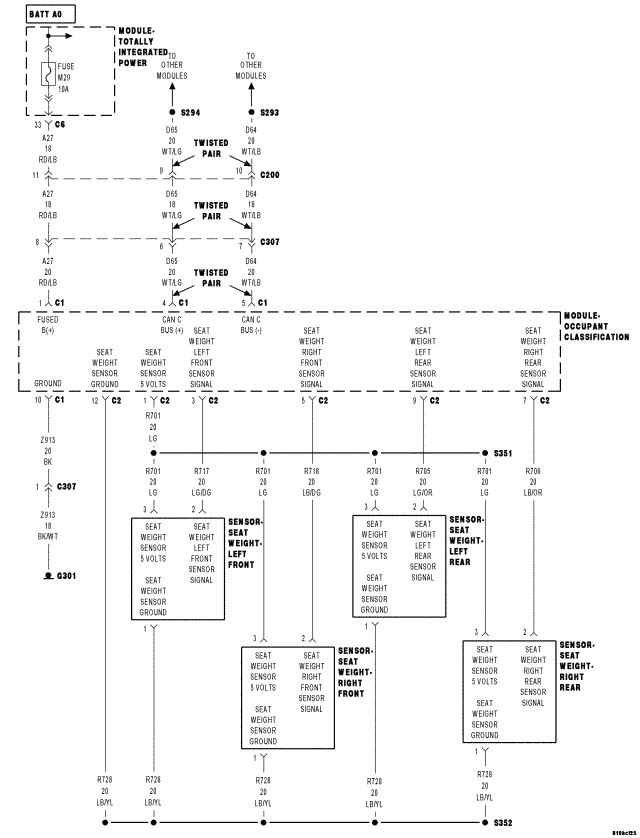

Fig 1: Occupant Classification Module Circuit Schematic

GC0061831

Courtesy of CHRYSLER LLC
