Installation

INSTALLATION

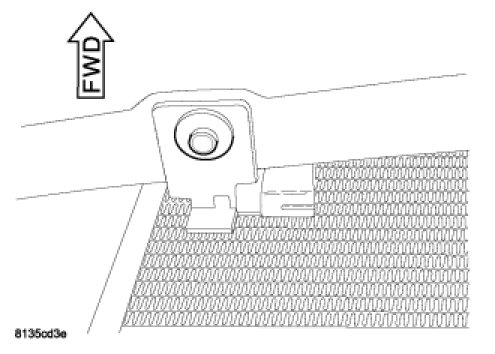

1. Position the ambient temperature sensor in the vehicle.

2. Install the fastener that secures the ambient temperature sensor to the front fascia.

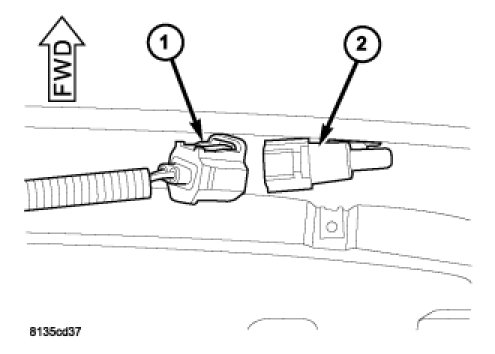

3. Connect the wire harness connector (1) to the ambient temperature sensor (2).

4. Install the belly pan.

5. Connect the battery negative cable.
