Removal

REMOVAL

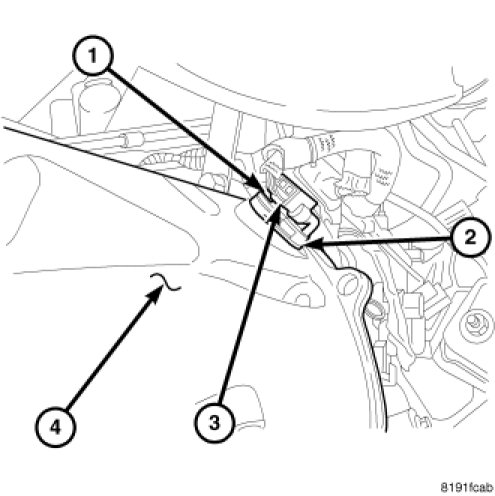

The Crankshaft Position (CKP) sensor (2) is mounted into the right side of the transmission bellhousing (4). It is positioned and bolted into a machined hole.

1. Raise vehicle.

2. Disconnect sensor electrical connector (3).

3. Remove sensor mounting bolt (1).

4. Carefully twist sensor (2) from cylinder block.

5. Check condition of sensor O-ring.
