Manifold Pressure/Vacuum Sensor: Locations

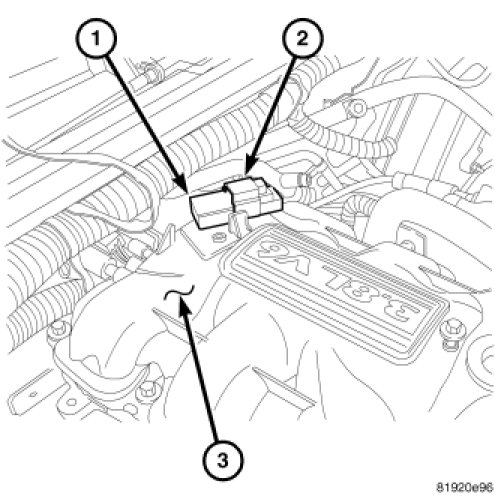

The MAP sensor (1) is installed into the rear of the upper intake manifold (3).
