Installation

INSTALLATION





NOTE: The gearshift cable must be secured into position and properly adjusted before the installation of the Park-Interlock Cable.

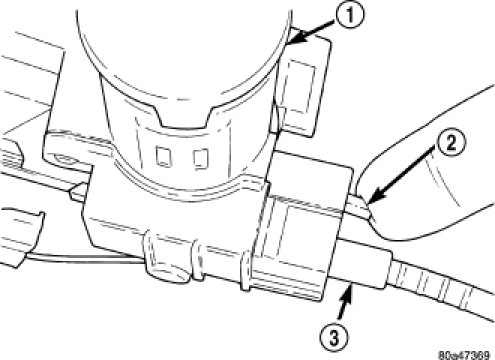

1. Push the park-interlock cable (3) straight into the square mounting hole in the steering column until cable snaps in place.
2. Snap park-interlock cable tie strap into hole in steering column tube.

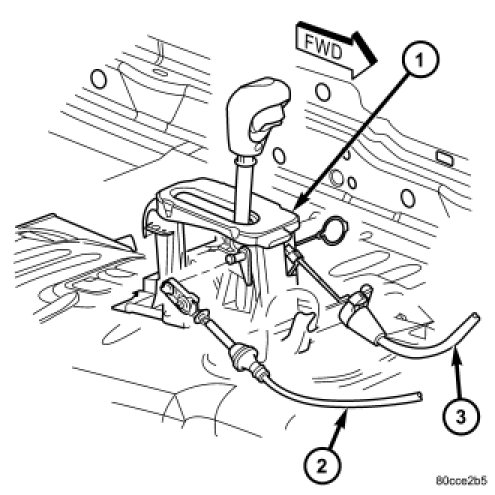

3. Route cable to the shifter mechanism.
4. Install the cable end fitting into shifter lever (1).
5. Snap cable adjuster ears into floor shifter bracket.
6. Place the ignition key cylinder in the LOCK position.
7. Push the cable adjuster lock clamp downward to lock it.
8. Test the park-interlock cable operation.
9. Install the floor console and related trim.
