Removal

REMOVAL

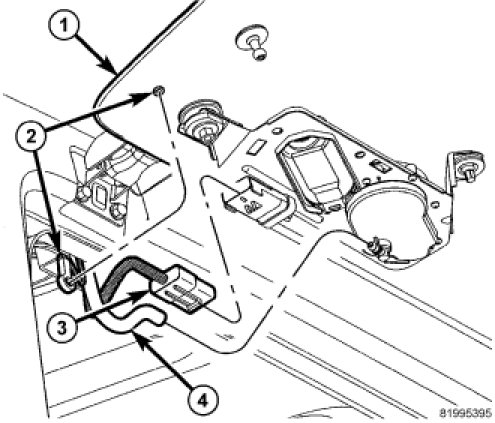

1. Disconnect the rear wiper motor electrical connectors (3).

2. Disconnect the washer hose (4).

3. Disconnect the rear window heater grid connector (2).

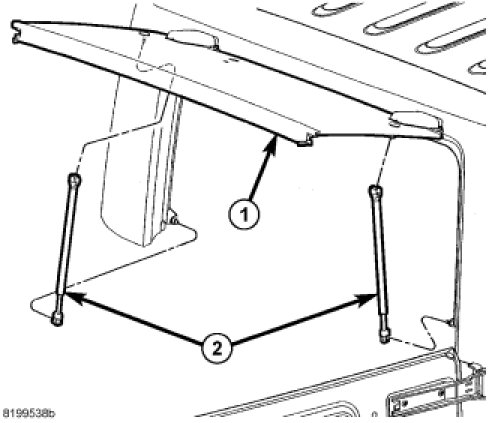

4. Remove the glass supports (2).

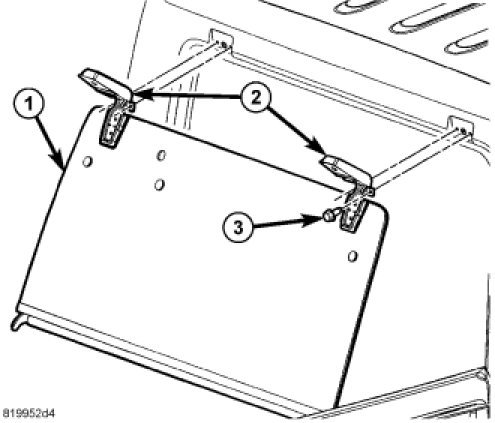

5. Using a trim stick C-4755 or equivalent, open the hinge trim covers (2).

6. Remove the bolts (3) and remove the backlite (1).
