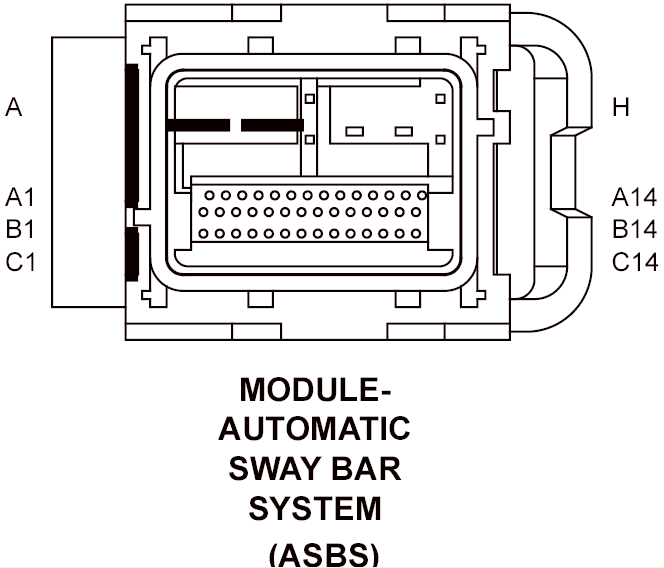

Automatic Sway Bar System Module Connector End View
MODULE-AUTOMATIC SWAY BAR SYSTEM - 50-WAY (ASBS)
| CAV | CIRCUIT | FUNCTION |
| A | - | - |
| A1 | - | - |
| A2 | - | - |
| A3 | - | - |
| A4 | - | - |
| A5 | - | - |
| A6 | D65 20WT/LG | CAN C BUS (+) |
| A7 | D64 20WT/LB | CAN C BUS (-) |
| A8 | - | - |
| A9 | - | - |
| A10 | - | - |
| A11 | - | - |
| A12 | - | - |
| A13 | - | - |
| A14 | - | - |
| B | A959 14RD | FUSED B(+) |
| B1 | F943 20PK/LG | FUSED RUN/START RELAY OUTPUT (EARLY BUILD) |
| B1 | F941 20PK/LG | FUSED RUN/START RELAY OUTPUT (LATE BUILD) |
| B2 | - | - |
| B3 | - | - |
| B4 | - | - |
| B5 | - | - |
| B6 | - | - |
| B7 | - | - |
| B8 | - | - |
| B9 | - | - |
| B10 | - | - |
| B11 | - | - |
| B12 | - | - |
| B13 | - | - |
| B14 | - | - |
| C | - | - |
| C1 | - | - |
| C2 | - | - |
| C3 | - | - |
| C4 | - | - |
| C5 | - | - |
| C6 | - | - |
| C7 | - | - |
| C8 | - | - |
| C9 | - | - |
| C10 | - | - |
| C11 | - | - |
| C12 | - | - |
| C13 | - | - |
| C14 | - | - |
| D | - | - |
| E | Z905 14BK | GROUND |
| F | Z905 14BK | GROUND |
| G | - | - |
| H | - | - |
