Powertrain Control Module (Gas) Connector End View (C3)

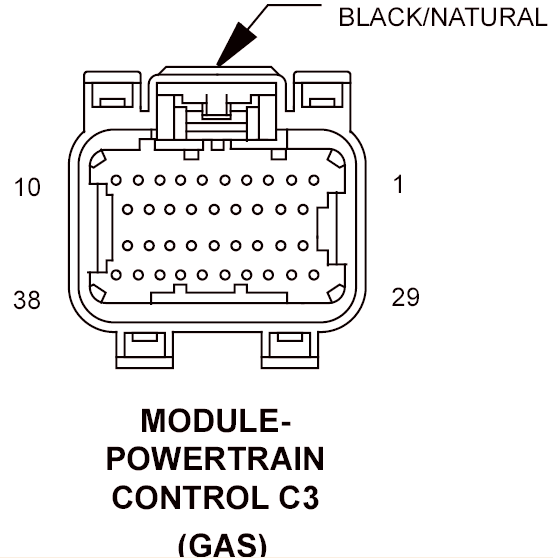

MODULE-POWERTRAIN CONTROL C3 - BLACK/NATURAL 38-WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	K51 20BR/WT	ASD RELAY CONTROL (EARLY BUILD)
3	K51 20BR/LB	ASD RELAY CONTROL (LATE BUILD)
4	-	-
5	-	-
6	-	-
7	-	-
8	-	-
9	K299 18BR/WT	O2 1/2 HEATER CONTROL
10	K399 18BR/GY	O2 2/2 HEATER CONTROL
11	C13 18LB/OR	A/C CLUTCH CONTROL
12	-	-
13	-	-
14	B16 20LB/DG	BRAKE SIGNAL 2
15	V937 20VT/BR	S/C SWITCH GROUND
16	K167 20BR/YL	APP 1 SENSOR GROUND
17	K400 20BR/VT	APP 2 SENSOR GROUND
18	V72 20OR/VT	S/C SIGNAL 2
19	F342 16BR/WT	FUSED ASD RELAY OUTPUT
20	K52 18DB/WT	EVAP PURGE CONTROL
21	T141 18YL/OR	CLUTCH INTERLOCK SIGNAL (MTX)
22	-	-
23	B15 20DG/WT	BRAKE SIGNAL 1
24	-	-
25	K23 20BR/WT	APP 1 SIGNAL
26	-	-
27	-	-
28	F342 16BR/WT	FUSED ASD RELAY OUTPUT
29	K70 18DB/BR	EVAP PURGE RETURN
30	-	-
31	-	-
32	-	-
33	-	-
34	V71 20VT/OR	S/C SIGNAL 1
35	K107 18VT/WT	ESM SIGNAL
36	K29 20WT/BR	APP 2 SIGNAL
37	K31 18BR	FUEL PUMP CONTROL
38	T752 18DG/OR	STARTER RELAY CONTROL
