Powertrain Control Module (RFE) Connector End View (C4)

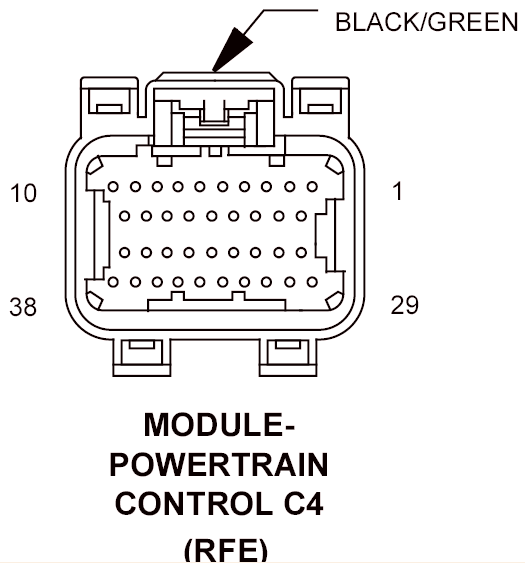

MODULE-POWERTRAIN CONTROL C4 - BLACK/GREEN 38-WAY (RFE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T60 16YL/GY	OD CONTROL
2	T259 16DG/WT	4C CONTROL
3	-	-
4	T140 16YL/GY	MS CONTROL
5	-	-
6	T219 16WT/DB	2C CONTROL
7	-	-
8	T59 16YL/LB	UD CONTROL
9	-	-
10	T20 16DG/WT	L/R CONTROL
11	T118 16DG	LINE PRESSURE CONTROL
12	Z903 16BK/LG	GROUND
13	Z903 16BK/LG	GROUND
14	Z903 16BK/LG	GROUND
15	T1 18DG/LB	TRS T1 SIGNAL
16	T3 18DG/DB	TRS T3 SIGNAL
17	-	-
18	T15 18YL/BR	TRANSMISSION CONTROL
19	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
20	T48 18BR/YL	4C PRESSURE SIGNAL
21	T29 18YL/WT	UD PRESSURE SIGNAL
22	T9 18DG/TN	OD PRESSURE SIGNAL
23	-	-
24	-	-
25	-	-
26	T4 18DG/LB	TRS T2 SIGNAL
27	T41 18YL/DB	TRS T41 SIGNAL
28	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
29	T50 18YL/TN	L/R PRESSURE SIGNAL
30	T147 18DG/YL	2C PRESSURE SIGNAL
31	T38 18YL/BR	LINE PRESSURE SIGNAL
32	T14 18DG/BR	OUTPUT SPEED SIGNAL
33	T52 18DG/OR	INPUT SPEED SIGNAL
34	T13 18DG/VT	SENSOR GROUND
35	T54 18DG/OR	TRANSMISSION TEMPERATURE SIGNAL
36	-	-
37	T42 18DG/YL	TRS T42 SIGNAL
38	T16 16YL/OR	TRANSMISSION CONTROL OUTPUT
