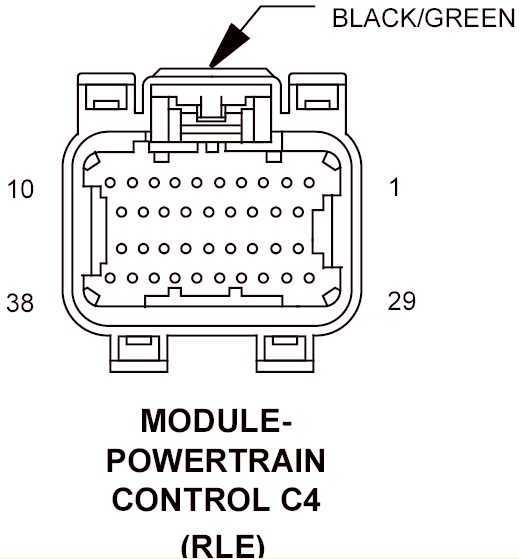

Powertrain Control Module (RLE) Connector End View (C4)
MODULE-POWERTRAIN CONTROL C4 - BLACK/GREEN 38-WAY (RLE)
| CAV | CIRCUIT | FUNCTION |
| 1 | T60 16YL/GY | OD CONTROL |
| 2 | T59 16YL/LB | UD CONTROL |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | T19 16YL/DB | 2/4 CONTROL |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | T20 16DG/WT | L/R CONTROL |
| 11 | T118 18DG | LINE PRESSURE CONTROL |
| 12 | - | - |
| 13 | Z903 16BK/LG | GROUND |
| 14 | Z903 16BK/LG | GROUND |
| 15 | T1 18DG/LB | TRS T1 SIGNAL |
| 16 | T3 18DG/DB | TRS T3 SIGNAL |
| 17 | - | - |
| 18 | T15 18YL/BR | TRANSMISSION CONTROL |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | T9 18DG/TN | OD PRESSURE SIGNAL |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | T41 18YL/DB | TRS T41 SIGNAL |
| 28 | T16 16YL/OR | TRANSMISSION CONTROL OUTPUT |
| 29 | T50 18YL/TN | L/R PRESSURE SIGNAL |
| 30 | T47 18YL/DG | 2/4 PRESSURE SIGNAL |
| 31 | T38 18YL/BR | LINE PRESSURE SIGNAL |
| 32 | T14 18DG/BR | OUTPUT SPEED SIGNAL |
| 33 | T52 18DG/OR | INPUT SPEED SIGNAL |
| 34 | T13 18DG/VT | SENSOR GROUND |
| 35 | T54 18DG/OR | TRANSMISSION TEMPERATURE SIGNAL |
| 36 | - | - |
| 37 | T42 18DG/YL | TRS T42 SIGNAL |
| 38 | T16 16YL/OR | TRANSMISSION CONTROL OUTPUT |
