U0168-Lost Communication With Vehicle Security Control Module (SKREEM-WCM)
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

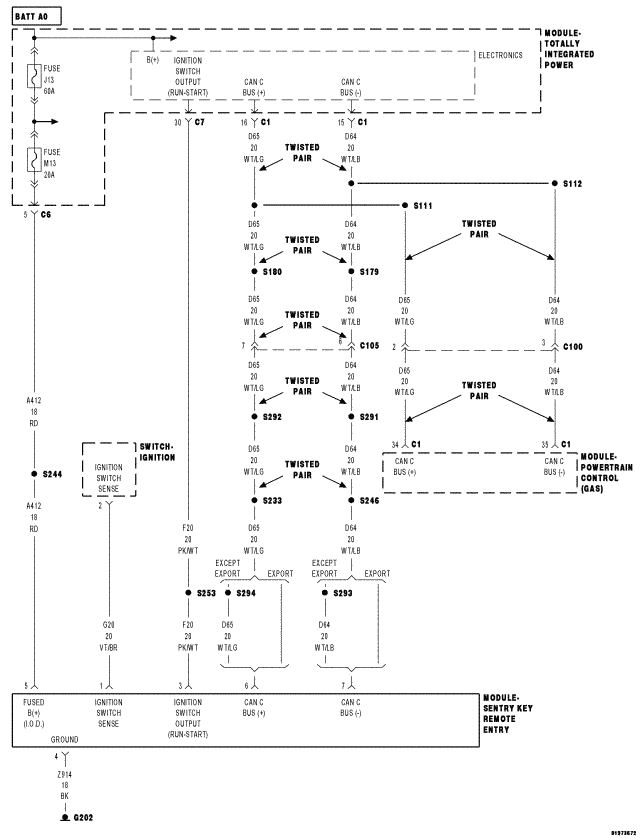

Fig 1: Vehicle Security Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
