Coolant Recovery Container-Removal-Gas Engine

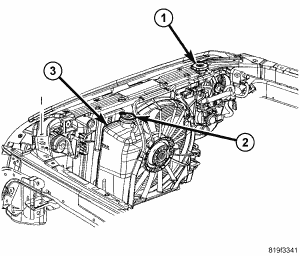

Fig 1: Coolant Recovery Bottle - Gas
GC0063853Courtesy of CHRYSLER LLC
1 - Item_1
2 - Item _2
  1. Disconnect the hose from radiator filler neck.
  2. Remove coolant recovery bottle.
